KC22-1

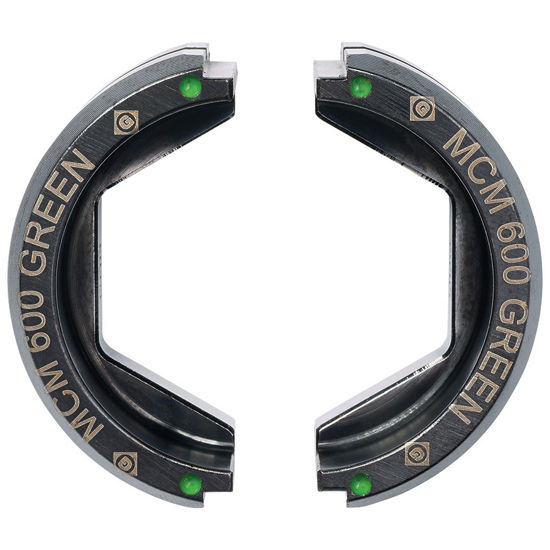

Pan-Lug™ KC22-1 Crimp Dies
Features
- Color-coded to provide easy matching to color-coding marked on connectors
- Embosses die index number on connector barrels to provide post crimp inspection
- Part number permanently marked on crimping die for easy identification
- Provide hex style crimp results in terminations with premium electrical and mechanical performance
Specifications
| Compatible Connector | A-Series Copper Compression Lugs |
|---|---|
| Product Type | Crimp Die |
| Sub Brand | Pan-Lug™ |
| Color Code | Green |
| Flex Conductor Size | 1 AWG |
| Panduit Die Index Number | 1 |
| For Use With | Crimp die for use with 1 AWG class K flexible stranded copper conductor in Panduit tools: CT-3001/ST and CT-3001/CCP, Greenlee EK622L, Schleuniger CT60, Wezag UP60. Performs a Hex style crimp. |
| Crimp Profile | Hex |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
