CT-940CH/BJO

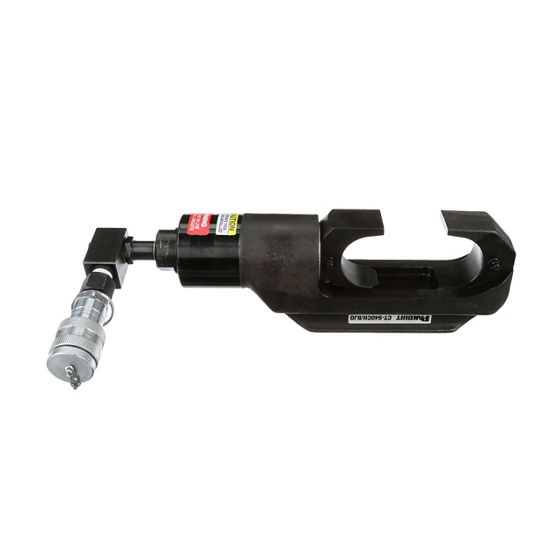

Pan-Lug™ CT-940CH/BJO Hydraulic Crimp Head
Specifications
| Note | Do not operate tool without dies in place. Do not use on live circuits. |
|---|---|
| Product Type | Hydraulic Crimp Head |
| Sub Brand | Pan-Lug™ |
| Tool Type | Die Type |
| For Use With | 10,000 psi Hydraulic Pump |
| Crimp Force (ton) | 15 |
| Includes | (1) Operating Instructions, (1) Carrying Case |
| Weight (Kg) | 6.8 |
| Weight (lb) | 15 |
| Copper Conductor Size | 8 AWG-1500 kcmil |
| Aluminum Conductor Size | 6 AWG-750 kcmil |
| Metric Class 2r Copper Conductor Size (mm²) | 630 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 300 |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 388 |
| Overall Width (In.) | 2.5 |
| Overall Width (mm) | 64 |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104 |
| Part Features | Includes Banjo Quick Connector Fitting that can Swivel 360 Degrees |
