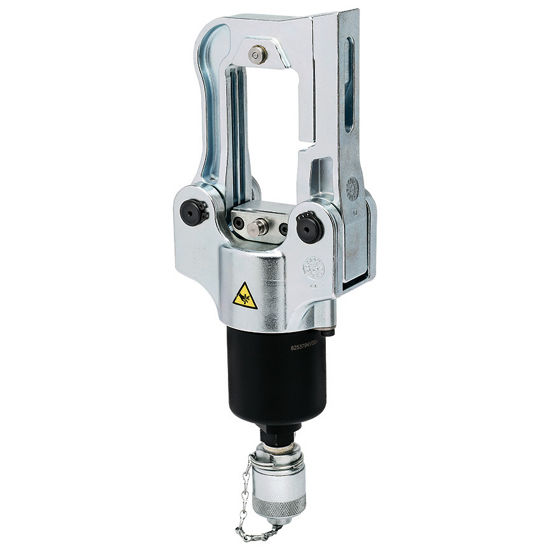

Pan-Lug™ CT-920CH/CCP Hydraulic Crimp Head
12-ton 3-in-1 hydraulic, Crimp, Cut & Punch Universal Crimp head. Crimps Panduit copper compression lugs and splices from: 8 AWG – 750 kcmil copper Code, 8 AWG – 535 kcmil copper flex, metric 10 mm2 – 400 mm2 Class 2r and 10mm2 – 300mm2 Class 5f & 6f , 6 AWG – 600 kcmil aluminum wire. Crimps full range of Panduit copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 1/0 AWG. Includes tool, and nylon carrying case . Uses panduit CD-920 and CD-930 crimp dies,cutting blades and hole punch adapter, sold separately, Converts to a Dieless tool with UA12ID indentor die adapter. sold seperately. Recommended for use with Panduit CT-902HP hydraulic pump and CT-900HPH 10' hydraulic hose.
Brand: Panduit
Add to Quote Download Spec Sheet PDFFeatures
- Universal tool design operates using crimp dies, wire and threaded-rod cutting blades and hole punch adapter, sold separately
- Incorporates Parker type quick-connect fittings to ease installation and save time
- Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)
- Durable crimp head design for long life
- Universal flip-top head
- Uses Panduit CD-920 and CD-930 crimp dies or Panduit UA12ID nest/indenter adapter for dieless crimping
- Dies installed using spring loaded die retention pins, no need for tools
Specifications
| Product Type | Hydraulic Crimp Head |
|---|---|
| Sub Brand | Pan-Lug™ |
| Application | Multi-Use Tool, cut and punch |
| Tool Type | Die Type |
| For Use With | Panduit Crimp Dies |
| Includes | (1) Heavy Duty Carrying Bag, (1) UA12TKL Die Adapter for Panduit CD-920 and CD-930 Crimp Dies |
| Overall Length (In.) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (In.) | 2.7 |
| Overall Width (mm) | 69 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114 |
