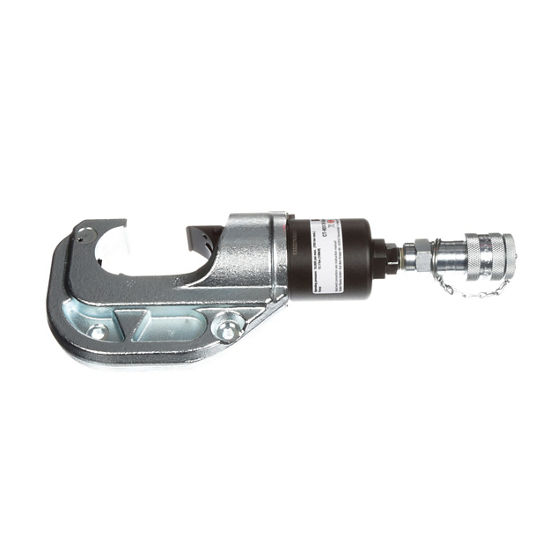

Pan-Lug™ CT-920CH Hydraulic Crimp Head
When partnered as a complete Panduit set, the Panduit® BlackFin® Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code, #8 AWG – 535 kcmil copper flex, #6 AWG – 600 kcmil aluminum, 10mm2 – 400 mm2 copper class 2 metric, 10mm2 – 300mm2 copper class 5f and 6f metric and #6 AWG – 250 kcmil copper code Direct Burial Grounding connectors. Includes Parker type quick-connect fitting and heavy duty carrying bag. Recommended for use with Panduit CT-902HP hydraulic pump with CT-900HPH hydraulic hose and CD-920 or CD-930 crimp dies, sold separately.
Brand: Panduit
Add to Quote Download Spec Sheet PDFFeatures
- Incorporates Parker type quick-connect fittings to ease installation and save time
- Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)
- Durable crimp head design for long life
- Open "C" head design allows for easy loading of crimping dies and connectors, saves time
- Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector
- Dies installed using spring loaded die retention pins, no need for tools
- Cast-in handle allows crimp head to be mounted in a bench vice
Specifications
| Product Type | Hydraulic Crimp Head |
|---|---|
| Sub Brand | Pan-Lug™ |
| Application | Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies. |
| Tool Type | Die Type |
| For Use With | Panduit Crimp Dies |
| Overall Height (In.) | 5.1 |
| Overall Height (mm) | 129 |
