CT-810

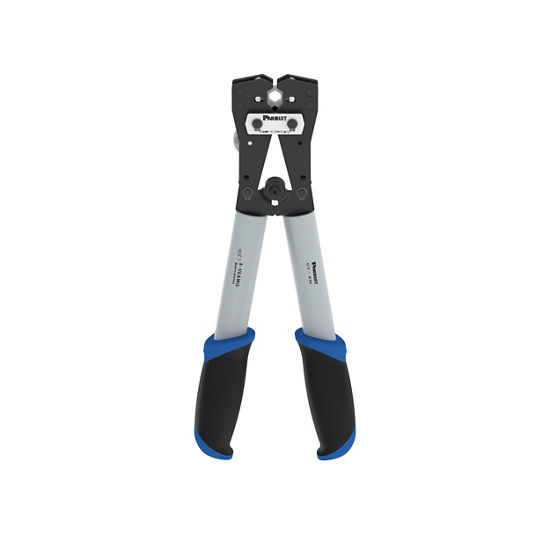

Pan-Lug™ CT-810 Hand Crimping Tool, 8-1/0, PK1
The Panduit CT-810 is a simple and easy to use hand crimping tool that crimps #8, #6, #4, #2, #1, and 1/0 AWG power connector lugs. This tool requires no individual dies – instead, it includes a 6-position integrated rotating wheel that provides a UL and CSA approved crimp.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Crimp Profile | Hex |
|---|---|
| Tool Type | Dieless |
| Base Material | Steel |
| Compatible Connector | Copper Compression AWG Lugs |
| Insulated Tool Head | No |
| Jaw Opening Width (In.) | 0.572 |
| Jaw Opening Width (mm) | 14.5 |
| Sub Brand | Pan-Lug™ |
| Copper Conductor Size | 8-1/0 AWG |
| Tool Configuration | Hand Operated |
| Overall Length (In.) | 15.71 |
| Overall Length (mm) | 399 |
| Overall Width (In.) | 6.31 |
| Overall Width (mm) | 160 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35 |
| Weight (Kg) | 1.25 |
| Weight (lb) | 2.8 |
| Includes | (1) 6-Position Integrated Rotating Wheel |
| Product Type | Hand Crimp Tool |
| Part Features | High quality, durable tool construction provides long term dependability |
