CT-2600/LBT

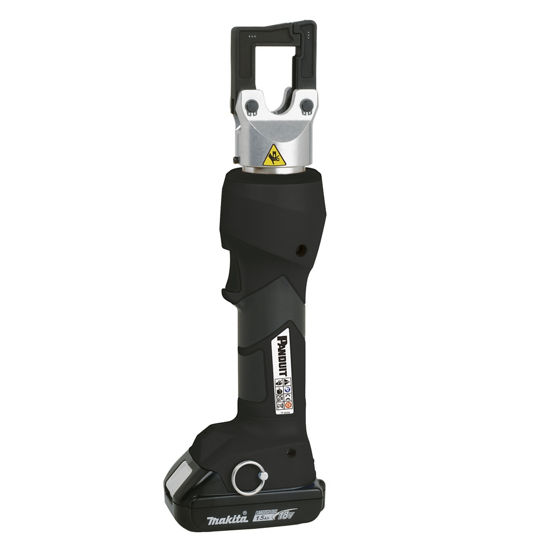

Pan-Lug™ CT-2600/LBT Hydraulic Crimp Tool
The CT-2600/LBT BlackFin® Battery Powered Crimping Tool with Bluetooth® technology, crimps with just the touch of a button. Quickly and easily terminate bare, vinyl insulated, and KYNAR insulated large wire terminals. with a flip-top crimp head. The crimp tool has a force of 4 tons and meets OSHA mandated electrical and mechanical product safety requirements for handheld and motor-operated electric tools.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Tool Type | Die Type |
|---|---|
| Aluminum Conductor Size | 6-2/0 AWG |
| Copper Conductor Size | 8 AWG-300 kcmil |
| Sub Brand | BlackFin™ |
| For Use With | Panduit Compression Connectors |
| Includes | (2) 18VDC 4Ah Makita Lithium-Ion Rechargeable Batteries, (1) 120VAC Makita Battery Charger (U.S. Plug), (1) Tool Case |
| Crimp Force (ton) | 4 |
| Crimp Head Rotation (°) | 330 |
| Connection Type | A |
| Crimp Cycle Time (s) | 4 |
| Battery Charge Time (min) | 40 |
| Battery Type | Lithium-Ion |
| Insulated Tool Head | No |
| Overall Length (In.) | 4.9 |
| Overall Length (mm) | 125 |
| Overall Width (In.) | 3 |
| Overall Width (mm) | 75 |
| Overall Height (In.) | 14.2 |
| Overall Height (mm) | 360 |
| Standards Met | Meets OSHA mandated electrical and mechanical product safety requirements for Handheld Motor-Operated Electric Tools specification UL 60745-1 and CSA C22.2 No. 60745-1. |
| Product Type | Hydraulic Crimp Tool |
| Tool Configuration | In-Line Design |
| Weight (Kg) | 1.8 |
| Weight (lb) | 4 |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Battery Voltage (V) | 18 |
