CT-2002CH

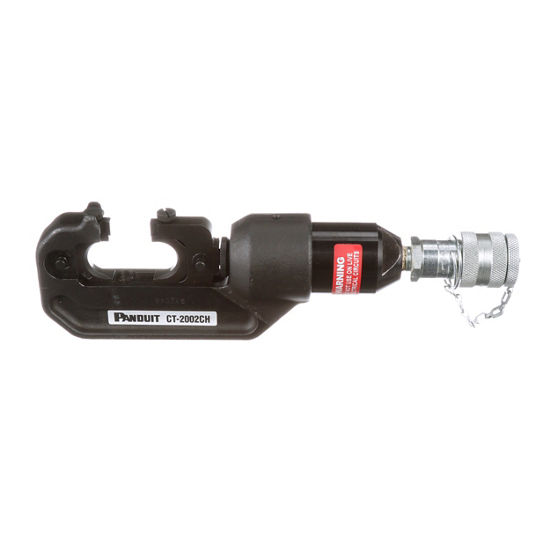

Pan-Lug™ CT-2002CH Hydraulic Crimp Head
Specifications
| Note | Do not operate tool without dies in place. Do not use on live circuits. |
|---|---|
| Product Type | Hydraulic Crimp Head |
| Sub Brand | Pan-Lug™ |
| Tool Type | Die Type |
| For Use With | 10,000 psi Hydraulic Pump |
| Crimp Force (ton) | 6 |
| Tool Configuration | CRIMP HEAD |
| Includes | (1) Operating Instructions, (1) Carrying Case |
| Weight (Kg) | 2.7 |
| Weight (lb) | 6 |
| Copper Conductor Size | 8 AWG-500 kcmil |
| Metric Class 2r Copper Conductor Size (mm²) | 240 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 95 |
| Overall Length (In.) | 12 |
| Overall Length (mm) | 305 |
| Overall Width (In.) | 2.2 |
| Overall Width (mm) | 56 |
| Overall Height (In.) | 3.5 |
| Overall Height (mm) | 89 |
| Part Features | Includes D3 Die Holder |
