CD-920-4NEST

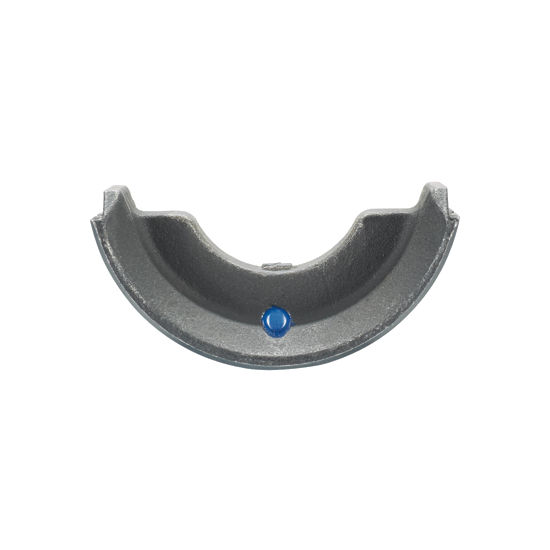

Pan-Lug™ CD-920-4NEST Crimp Dies
Nest crimping die used with Panduit CDI-920-10 indenter die and specified tools for terminating Panduit copper compression lugs and splices used with 10 mm2 and 16 mm2 Class 5f and Class 6f flexible strand metric conductor.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Product Type | Crimp Die |
|---|---|
| Sub Brand | Pan-Lug™ |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 10, 16 |
| Panduit Die Index Number | P29 |
| For Use With | Panduit crimping tools: CT-930, CT-2930/L, CT-2930/LE, CT-930CH, CT-2940/L, CT-2940/LE, CT-940CH, CT-2931, CT-2931/E, CD-940-DA die adapter needed with CT-940CH and CT-2940 tools. |
| Base Material | Steel |
| Part Features | Nest and Indenter die termination |
