LCAX250-34-X
CuLug,250kcmil,3/4StudPKG10

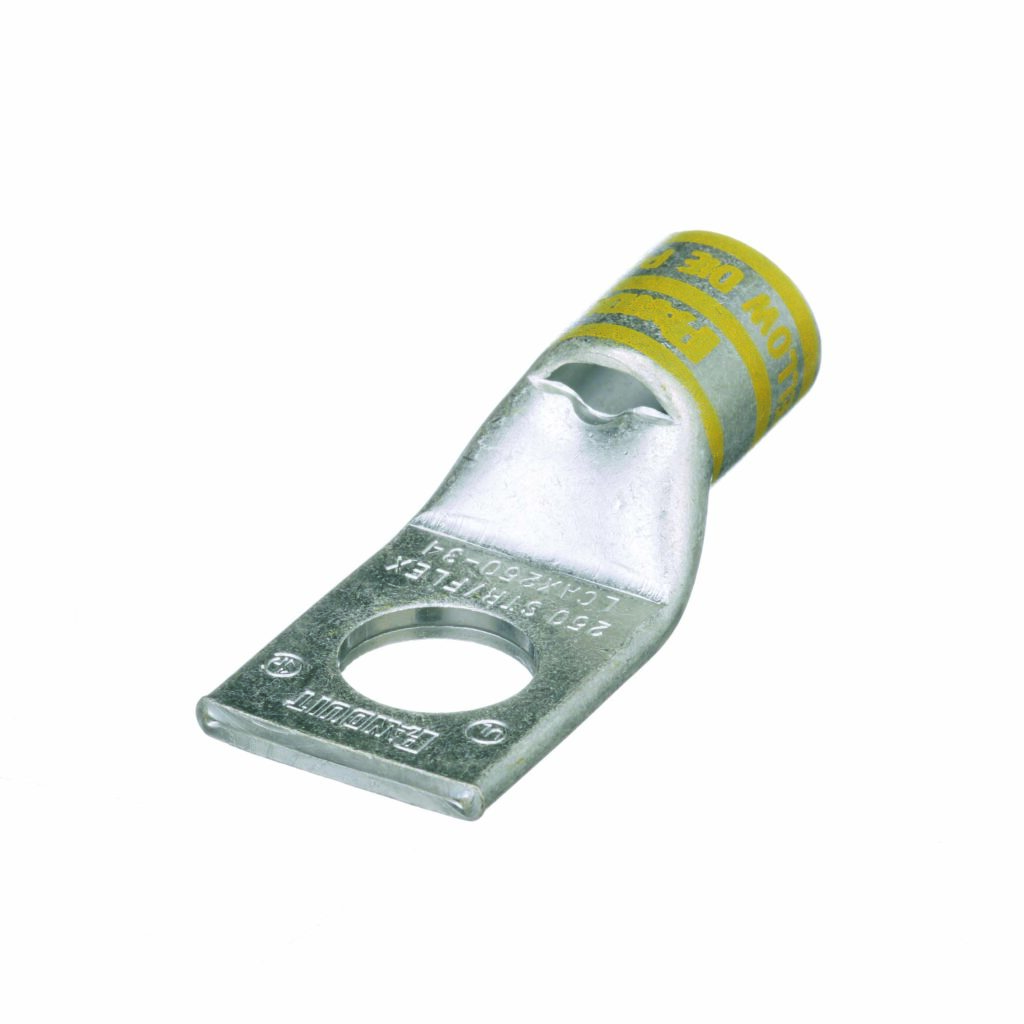

One-hole, flex lug, 250 kcmil cable, 3/4 stud hole.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
|---|---|
| Product Type | Compression Lug |
| Sub Brand | Pan-Lug™ |
| Category | Copper Compression Lugs |
| Barrel Type | Standard |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size | 250 kcmil |
| Stud Hole Size (In.) | 3/4 |
| Stud Hole Size (mm) | 19.1 |
| Number of Stud Holes | 1 |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Overall Length (In.) | 3.08 |
| Overall Length (mm) | 78.2 |
| Wire Strip Length (In.) | 1-1/16 |
| Wire Strip Length (mm) | 26.9 |
| Maximum Voltage (kV) | 35 |
| UL Temperature Rating (C) | 90 |
| CSA Temperature Rating (C) | 90 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164, ABS approved |
| Color Code | Yellow |
| Panduit Die Index No. | P62 |
| Burndy Die Index No. | 16 |
| T&B Die Index No. | 62 |
| Inspection Window | Yes |
| Product Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
| UPC | 07498344772 |
| Standard Package Qty | 10
— |
