CT-902HP220

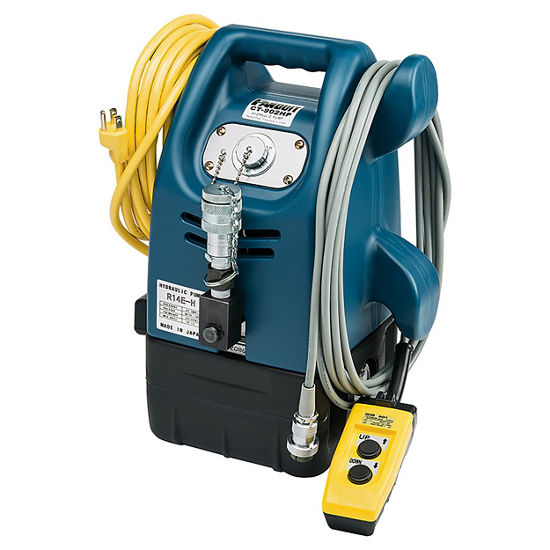

220 V Hydraulic Pump with Hand Pendant, 10K PSI
The CT-902HP220 Hydraulic Pump offers 10,000 psi of hydraulic pressure for continuous crimping applications. Easy operation using remote pendant supplied or optional CT-902RFS remote foot switch or CT-902RCH remote contol handle. Incorporates Parker type quick-connect fittings to ease installation and save time.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Product Type | Hydraulic Pump |
|---|---|
| Sub Brand | Pan-Lug™ |
| For Use With | CT-920CH, CT-920CH/CCP, CT-940CH, CT-980CH, CT-940CH/BJO crimp heads |
| Includes | (1) On/Off Pendant Switch on 10ft Electric Cord, (1) 10ft Electric Cord with Three-Prong A/C Plug, (1) Female Parker-Type Quick-Connect Fitting |
| Input Voltage (V) | 220 |
| Output Hydraulic Pressure (p) | 10000 |
| Overall Length (In.) | 9.5 |
| Overall Length (mm) | 241 |
| Overall Width (In.) | 10.5 |
| Overall Width (mm) | 267 |
| Overall Height (In.) | 15.5 |
| Overall Height (mm) | 393 |
| Weight (Kg) | 15.42 |
| Weight (lb) | 34 |
| Horsepower (hp) | 0.5 |
