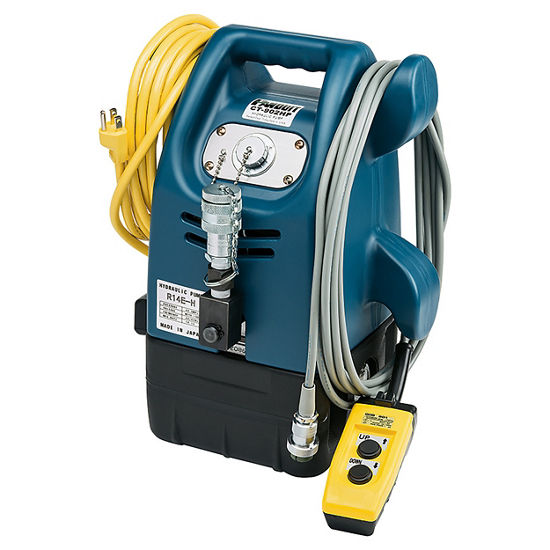

CT-902HPRFS
110 V Hydraulic Pump with Foot Switch, 10K PSI
The CT-902HPRFS Hydraulic Pump offers 10,000 psi of hydraulic pressure for continuous crimping applications. Supplied with the remote foot switch already attached to pump for quick set up. Incorporates Parker type quick-connect fittings to ease installation and save time.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Product Type | Hydraulic Pump |
|---|---|
| Sub Brand | Pan-Lug™ |
| For Use With | CT-920CH, CT-920CH/CCP, CT-940CH, CT-980CH, CT-940CH/BJO |
| Includes | (1) Remote Foot Switch, (1) 10ft Electric Cord with Three-Prong A/CP Plug, (1) Female Parker-Type Quick-Connect Fitting |
| Input Voltage (V) | 110 |
| Output Hydraulic Pressure (p) | 10000 |
| Overall Length (In.) | 9.5 |
| Overall Length (mm) | 241 |
| Overall Width (In.) | 10.5 |
| Overall Width (mm) | 267 |
| Overall Height (In.) | 15.5 |
| Overall Height (mm) | 393 |
| Weight (Kg) | 15.4 |
| Weight (lb) | 34 |
| Horsepower (hp) | 0.5 |
