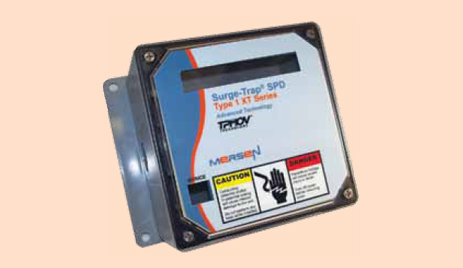

Surge-Trap Type 1 XT Series
Surge-Trap Type 1 XT Series

The Surge-Trap Type 1 XT Series offers Advanced Technology. It utilizes large block 50kA Thermally Protected MOV’s. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel.

The Surge-Trap Type 1 XT Series features/highlights include:

  • UL 1449 Third Edition Listed (Sept 2009)
  • Type 1 SPD – All UL required OCP & safety coordination included inside
  • Can be installed line-side or loadside of main disconnect
  • 20kA Nominal discharge current
  • 200kA SCCR (most models)
  • UL 96A Lightning Protection Master Label compliant (@20kA In)
  • NEMA 4X polycarbonate enclosure – UL 746C(f1) & UL 94-5VA
  • TPMOV® Technology Inside
  • All MOV suppression elements monitored
  • Filtering – AC sinewave tracking filter with EMI/RFI filtering up to -50dB from 10khz to 100mhz
  • Phase-loss monitoring (toggles LED and dry contacts)
  • Ten-year Warranty

The Surge-Trap Type 1 XT Series applications include:

  • Service Entrance
  • AC Distribution
  • Power supplies
  • Drive Protection
  • Large Control Panels
  • Telecommunications
  • IT / Data centers

Download the Schneider Electric Surge-Trap Type 1 XT Series SPD PDF below or call 714.835.6211 for more information.
