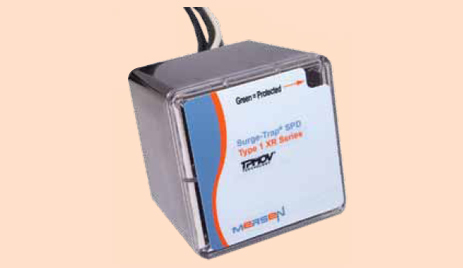

Surge-Trap Type 1 XR Series
Surge-Trap Type 1 XR Series

The Mersen Surge-Trap Type 1 XR Series meets requirements for UL1449 Third Edition and is ideal for the replacement of obsolete surge arrestors. The XR Series SPD feature TPMOV® technology inside making them the safest product available. With a small, compact design and line or load installation flexibility the XR series is the perfect fit from service entrance all the way down to a specific control panel.

The Surge-Trap Type 1 XR Series features and highlights include:

  • UL 1449 Third Edition Listed,Type 1 SPD
  • Can be installed line-side or loadside of main disconnect
  • 20kA Nominal discharge current
  • 200kA SCCR (most models)
  • UL 96A Lightning Protection Master Label compliant (20kA, In)
  • Large block 50kA Thermally Protected MOVs
  • Standard NEMA 4X polycarbonate enclosure
  • Tri-mount installation kit Included (pipe nipple, bracket, DIN-rail)
  • Two-year warranty Green=Go Visual Diagnostic Monitoring
  • Green LED = A-OK, Out = replace
  • Visible from multiple sides & angles for better viewing
  • Every MOV is monitored as opposed to ‘power is present’

Download the Mersen Surge-Trap Type 1 XR Series spec sheet  below or call 714.835.6211 for more information.
