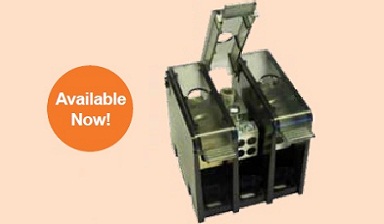

MPDB Series Open-Style Power Distribution Blocks
MPDB Series Open-Style Power Distribution Blocks

MPDB Series Open-Style Power Distribution Blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.

MPDB Series Open-Style Power Distribution Blocks Features/Benefits

  • Adder Poles
  • Wire Connectors
  • Insulators
  • Spacings
  • Safety Covers

MPDB Series Open-Style Power Distribution Blocks Additional Specifications:

Wire Type: Copper Blocks: 60/75ºC Solid/Stranded CU Aluminum Blocks: 60/75/90ºC Solid/Stranded AL and CU

Connector: Copper Blocks: Highly conductive tin-plated copper Aluminum Blocks: Highly conductive tin-plated aluminum

Insulating Material: Glass-filled polycarbonate with verified dielectric strength in excess of 2500V

Flammability: UL94-V0

Mounting: Direct panel mount

Environmental: RoHS compliant, Lead Free

The MPDB double-wide series are designed for custom applications where large ampacities are required. Double-wide blocks are not UL or CSA certified unless otherwise notice. All double-wide blocks are Mersen self-certified and approved.

Download the MPDB Series Open-Style Power Distribution Blocks spec sheet below or call 714.835.6211 for more information.
