Loose Tube Indoor/Outdoor Low Smoke Zero Halogen (LSZH)
The MarineTuff fiber line features all-dielectric cable, but metallic armoring can be added when needed for a specific installation. Cable designs feature flame retardant, thermoplastic buffers/tubes, aramid yarn strength members, optional aluminum armor, overall water-blocking tape and low smoke zero halogen jackets (LSZH).
Featured Options:
- Sunlightresistance
- Fullywater-blocked
- Singlemode and multimode riser ratedLSZH
Certifications/Compliance
- NEC/CEC
- ULType OFNR/OFCR
- cUL OFNR/OFCRFT-4
- Marineapprovals: ABS type approval

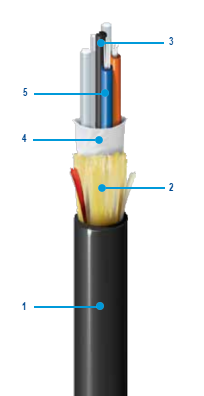

Construction:
- LSZHOuter Jacket
- AramidYarn
- CentralE-Glass Strength Member
- WaterBlocking Tape
- BlueBuffer Tube
Brand: Belden
Get a Quote Download Spec Sheet PDF| No. of Fibers | Fibers/ Bundle | Part No. | OD (Nom) | |||||
| OM1 (62.5/125) Std. 1Gb | OM2 (50/125) Std. 1 Gb | OM3 (50/125) 10 Gb – 300 m | OM4 (50/125) 10 Gb – 550 m | OS2 Single-mode Enhanced | Inch | mm | ||
| 6 | 6 | B9B830* | B9A830 | B9C830* | B9E830 | B9W830 | ||
| 12 | 12 | B9B831* | B9A831 | B9C831* | B9E831 | B9W831* | .38 | 9.65 |
| 24 | 12 | B9B832 | B9A832 | B9C832 | B9E832 | B9W832 | ||
| 36 | 12 | B9B833 | B9A833 | B9C833 | B9E833 | B9W833 | ||
| 48 | 12 | B9B834 | B9A834 | B9C834 | B9E834 | B9W834* | .48 | 12.18 |
