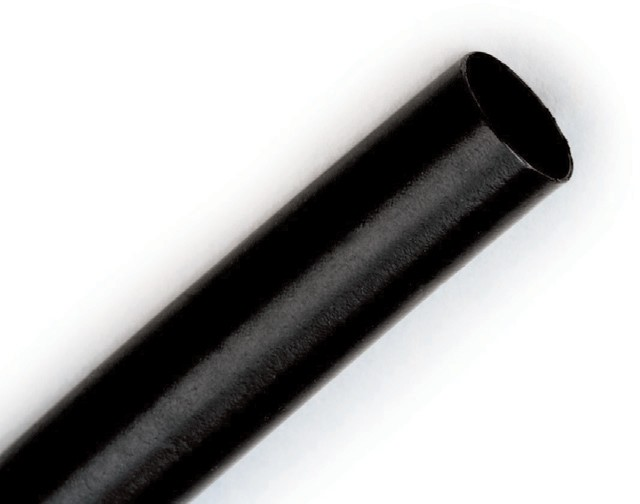

3M™ Heat Shrink Thin-Wall Tubing FP-301 (3/64 Inch)
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. Rated for 135°C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
FP-301 tubing is rated for continuous operation at -55°C (-67°F) to 135°C (275°F), and is designed to withstand elevated temperatures to 300°C (572°F) for short periods. Minimum shrink temperature for all FP-301 tubing is 100°C (212°F).
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Color | Format | Flame Retardant | Case Qty. |
| FP301-3/64-6″-Black-10-10 Pc Pks | 051128-60126 | Black | 6″ (152,4 mm) pieces | Yes | 10/pk, 10 pks |
| FP301-3/64-48″-Black-25 Pcs | 051128-59960 | Black | 48″ (1,22 m) sticks | Yes | 25 pcs |
| FP301-3/64-48″-Black-250 Pcs | 051128-59806 | Black | 48″ (1,22 m) sticks | Yes | 250 pcs |
| FP301-3/64-48″-Blue-25 Pcs | 051128-59964 | Blue | 48″ (1,22 m) sticks | Yes | 25 pcs |
| FP301-3/64-48″-Clear-25 Pcs | 051128-59961 | Clear | 48″ (1,22 m) sticks | No | 25 pcis |
| FP301-3/64-48″-Red-25 Pcs | 051128-59963 | Red | 48″ (1,22 m) sticks | Yes | 25 pcs |
| FP301-3/64-48″-White-25 Pcs | 051128-59962 | White | 48″ (1,22 m) sticks | Yes | 25 pcs |
| FP301-3/64-100′-Black-Spool | 051138-36027 | Black | 100′ (30,48 m) Reel | Yes | 3 Reels |
| FP301-3/64-100′-Clear-Spool | 051138-36028 | Clear | 100′ (30,48 m) Reel | No | 3 Reels |
| FP301-3/64-1000′-Black-Spool | 054007-08458 | Black | 1000′ (304,8 m) Reel | Yes | 3 Reels |
| FP301-3/64-1000′-Clear-Spool | 054007-08523 | Clear | 1000′ (304,8 m) Reel | No | 3 Reels |
Specifications
| Material | Polyolefin |
|---|---|
| Ordering Size | 3/64" (1,17 mm) |
| Expanded I.D. (Min.) | 0.046" (1,17 mm) |
| Recovered I.D. (Max.) | 0.023" (0,58 mm) |
| Recovered Wall Thickness (Nominal) | 0.016" (0,41 mm) |
| Shrink Ratio | 2:1 |
| Operating Temperature | -67°F to 275°F (-55°C to 135°C) |
| Voltage | 600 Volts Max. |
| RoHS 2011/65/EU | Yes |
| Application Specifications | SAE-AMS-DTL-23053/5, Class 1, 2; AMS-3636, AMS-3637 |
