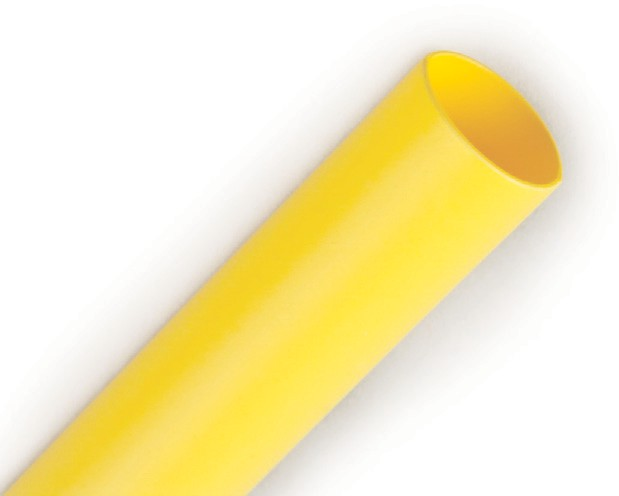

3M™ Heat Shrink Thin-Wall Tubing FP-301 (2 Inch)
Lightweight, tough and flexible. 3M™ Single Wall Tubing is the right choice for electrical insulation in many industrial and manufactured products. It’s also dependable as a lightweight wire harness, wire marking, wire bundling, component packaging and fire- resistant cover.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Color | Format | Flame Retardant | Case Qty. |
| FP301-2-48″-Black-5 Pcs | 051128-59616 | Black | 48″ (1,22 m) sticks | Yes | 5 pcs |
| FP301-2-48″-Black-24 Pcs | 051128-59847 | Black | 48″ (1,22 m) sticks | Yes | 24 pcs |
| FP301-2-48″-Blue-5 Pcs | 051128-59621 | Blue | 48″ (1,22 m) sticks | Yes | 5 pcs |
| FP301-2-48″-Clear-5 Pcs | 051128-59617 | Clear | 48″ (1,22 m) sticks | No | 5 pcs |
| FP301-2-48″-Clear-24 Pcs | 051128-59858 | Clear | 48″ (1,22 m) sticks | No | 24 pcs |
| FP301-2-48″-Red-5 Pcs | 051128-59619 | Red | 48″ (1,22 m) sticks | Yes | 5 pcs |
| FP301-2-48″-White-5 Pcs | 051128-59618 | White | 48″ (1,22 m) sticks | Yes | 5 pcs |
| FP301-2-48″-Yellow-5 Pcs | 051128-59620 | Yellow | 48″ (1,22 m) sticks | Yes | 5 pcs |
| FP301-2-50′-Black-Spool | 051138-36024 | Black | 50′ (15,24 m) Spool | Yes | 1 Spool |
| FP301-2-50′-Clear-Spool | 051138-36023 | Clear | 50′ (15,24 m) Spool | No | 1 Spool |
| FP301-2-100′-Black-Spool | 054007-08517 | Black | 100′ (30,48 m) Spool | Yes | 2 Spools |
| FP301-2-100′-Clear-Spool | 054007-08534 | Clear | 100′ (30,48 m) Spool | No | 2 Spools |
Specifications
| Material | Polyolefin |
|---|---|
| Shrink Ratio | 2:1 |
| Operating Temperature | -67 to 275°F (-55 to 135°C) |
| Voltage | 600 Volts Max. |
| RoHS 2011/65/EU | Yes |
| Application Specifications | SAE-AMS-DTL-23053/5, Class 1, 2; AMS-3636, AMS-3637 |
| Ordering Size | 2" (50,8 mm) |
| Expanded I.D. (Min.) | 2.00" (50,80 mm) |
| Recovered I.D. (Max.) | 1.00" (25,40 mm) |
| Recovered Wall Thickness (Nominal) | 0.045" (1,14 mm) |
