3M™ Splice Kit UF
3M™ Splice Kit UF is designed to provide a reliable, moisture proof electrical connection for type UF-B underground feeder cable rated for 600 V (copper wire only) ranging from #14/3 without ground wire up to #8/3 with ground wire.
The UF splice kit consists of a connector-insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw connectors separated by a piece of vinyl insulation. The heat shrink tube is a heavy-wall, adhesive-lined tube. Underground Feeder (UF)-B cables are flat, and typically have three solid conductors without a ground or two solid conductors with a ground. They range in size from 14–8 AWG. The most common UF cable size is 14–10 AWG.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. |
UPC |
Description | Conductor Size | Min. Order Qty. | Case Qty. |

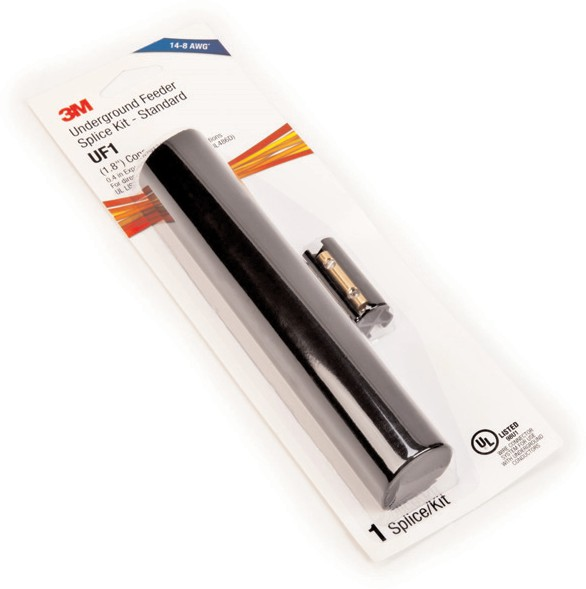

| UF1-Splice Kit-6 Kits | 054007-42920 | UF Splice Kit-Standard includes 1.8″ (45,7 mm) length connector/ 8.0″ (203,2 mm) length of heavy wall, adhesive lined heat shrink tube. | 14–8 AWG | 6 kits | 6 kits |
| UF2-Splice Kit-6 Kits | 054007-42921 | UF Splice Kit-Stretcher offers an 11.5″ (292,1 mm) length connector/ 20.0″ (508,0 mm) length of heavy wall, adhesive lined heat shrink tube. The Stretcher Kit is used in situations where a 7–10″ (17,8–25,4 cm) section of the cable has been damaged or destroyed. | 14–8 AWG | 6 kits | 6 kits |
Specifications
| Voltage Rating | 600 V (copper wire only) |
|---|---|
| Number of Conductors | Single Conductor |
| Cable/Shielding Type | Non-Shielded |
| Splice Type | Heat Shrink |
| Operating Temperature Range | -67°F to 230°F (-55°C to 110°C) |
| RoHS 2011/65/EU | Yes |
