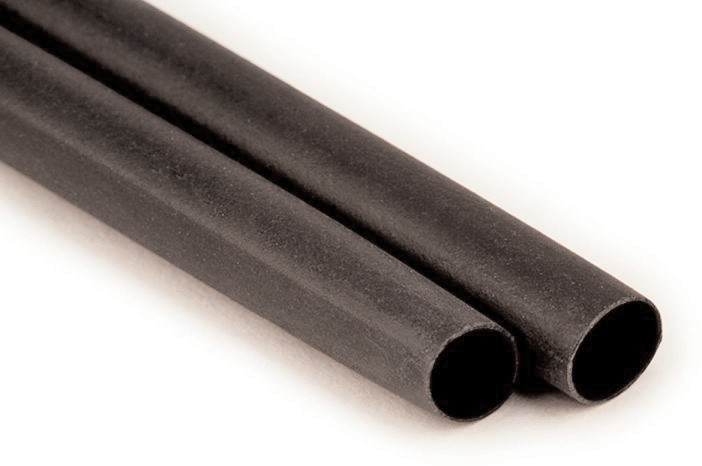

3M™ Heat Shrink Heavy-Wall Cable Sleeves ITCSN
The 3M™ Heat Shrink Heavy-Wall Cable Sleeves ITCSN are designed to provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection. ITCSN heavy-wall cable sleeves are cross-linked polyolefin. They are highly split resistant and fast shrinking to provide rapid installation. The cut-to-length sleeves come standard with a factory-applied adhesive/sealant. Order any of several packaging choices or look for the counter merchandiser assortment at a 3M authorized distributor.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Cable Size | Length | Expanded/Recovered UL Spec. Adhesive
I.D. Included |
Direct Bury | Case Qty. | ||
| ITCSN-0400-6″-Black-25 Pcs | 054007-08887 | 12-6 AWG | 6″ (152,4 mm) | 0.40″/0.15″
(10,2/3,8 mm) |
UL 486D | Yes | Yes | 25 |
| ITCSN-0400-6″-Black-100 Pcs | 054007-08963 | 12-6 AWG | 6″ (152,4 mm) | 0.40″/0.15″
(10,2/3,8 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-0400-6″-Black-12-3 Pc Pks | 051128-60075 | 12-6 AWG | 6″ (152,4 mm) | 0.40″/0.15″
(10,2/3,8 mm) |
UL 486D | Yes | Yes | 3/pk, 12 pks |
| ITCSN-0400-6″-Red-12-3 Pc Pks | 051128-60076 | 12-6 AWG | 6″ (152,4 mm) | 0.40″/0.15″
(10,2/3,8 mm) |
N/A | Yes | No | 3/pk, 12 pks |
| ITCSN-0400-48″-Black-5 Pcs | 054007-08902 | 12-6 AWG | 48″ (1,22 m) | 0.40″/0.15″
(10,2/3,8 mm) |
UL 486D | Yes | Yes | 5 |
| ITCSN-0400-48″-Black-20 Pcs | 054007-08964 | 12-6 AWG | 48″ (1,22 m) | 0.40″/0.15″
(10,2/3,8 mm) |
UL 486D | Yes | Yes | 20 |
| ITCSN-0400-25′-Black-Reel | 054007-08886 | 12-6 AWG | 25′ (7,62 m) | 0.40″/0.15″
(10,2/3,8 mm) |
N/A | No | No | 1 |
| ITCSN-0800-6″-Black-25 Pcs | 054007-40067 | 8-1/0 AWG | 6″ (152,4 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 25 |
| ITCSN-0800-6″-Black-100 Pcs | 054007-08965 | 8-1/0 AWG | 6″ (152,4 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-0800-6″-Black-12-3 Pc Pks | 051128-60077 | 8-1/0 AWG | 6″ (152,4 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 3/pk, 12 pks |
| ITCSN-0800-6″-Red-12-3 Pc Pks | 051128-60078 | 8-1/0 AWG | 6″ (152,4 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
N/A | Yes | No | 3/pk, 12 pks |
| ITCSN-0800-9″-Black-25 Pcs | 054007-08890 | 8-1/0 AWG | 9″ (228,6 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 25 |
| ITCSN-0800-9″-Black-100 Pcs | 054007-08966 | 8-1/0 AWG | 9″ (288,6 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 100
pcs/cs |
| ITCSN-0800-12″-Black-25 Pcs | 054007-08889 | 8-1/0 AWG | 12″ (304,8 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 25
pcs/cs |
| ITCSN-0800-12″-Black-100 Pcs | 054007-08967 | 8-1/0 AWG | 12″ (304,8 mm) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-0800-48″-Black-5 Pcs | 054007-08903 | 8-1/0 AWG | 48″ (1,22 m) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 5 |
| ITCSN-0800-48″-Black-20 Pcs | 054007-08968 | 8-1/0 AWG | 48″ (1,22 m) | 0.80″/0.20″
(20,3/5,1 mm) |
UL 486D | Yes | Yes | 20 |
| Order No. | UPC | Cable Size | Length | Expanded/Recovered UL Spec. Adhesive
I.D. Included |
Direct Bury | Case Qty. | ||
| ITCSN-0800-48″-Red-20 Pcs | 051128-55500 | 8-1/0 AWG | 48″ (1,22 m) | 0.80″/0.20″
(20,3/5,1 mm) |
N/A | Yes | No | 20 |
| ITCSN-0800-25′-Black-Reel | 054007-08888 | 8-1/0 AWG | 25′ (7,62 m) | 0.80″/0.20″
(20,3/5,1 mm) |
N/A | No | No | 1 |
| ITCSN-1100-6″-Black-25 Pcs | 054007-08894 | 2-4/0 AWG | 6″ (152,4 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 25 |
| ITCSN-1100-6″-Black-100 Pcs | 054007-08969 | 2-4/0 AWG | 6″ (152,4 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-1100-9″-Black-25 Pcs | 054007-08893 | 2-4/0 AWG | 9″ (228,6 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 25 |
| ITCSN-1100-9″-Black-100 Pcs | 054007-08970 | 2-4/0 AWG | 9″ (228,6 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-1100-9″-Black-12-3 Pc Pks | 051128-60079 | 2-4/0 AWG | 9″ (228,6 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 3/pk, 12 pks |
| ITCSN-1100-9″-Red-12-3 Pc Pks | 051128-60080 | 2-4/0 AWG | 9″ (228,6 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
N/A | Yes | No | 3/pk, 12 pks |
| ITCSN-1100-12″-Black-10 Pcs | 054007-08892 | 2-4/0 AWG | 12″ (304,8 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 10 |
| ITCSN-1100-12″-Black-100 Pcs | 054007-08971 | 2-4/0 AWG | 12″ (304,8 mm) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 100 |
| ITCSN-1100-48″-Black-5 Pcs | 054007-08904 | 2-4/0 AWG | 48″ (1,22 m) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 5 |
| ITCSN-1100-48″-Black-20 Pcs | 054007-08972 | 2-4/0 AWG | 48″ (1,22 m) | 1.10″/0.37″
(27,9/9,4 mm) |
UL 486D | Yes | Yes | 20 |
| ITCSN-1100-25′-Black-Reel | 054007-08891 | 2-4/0 AWG | 25′ (7,62 m) | 1.10″/0.37″
(27,9/9,4 mm) |
N/A | No | No | 1 |
| ITCSN-1500-9″-Black-10 Pcs | 054007-08897 | 3/0 AWG-
400 kcmil |
9″ (228,6 mm) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 10 |
| ITCSN-1500-9″-Black-50 Pcs | 054007-08973 | 3/0 AWG-
400 kcmil |
9″ (228,6 mm) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 50 |
| ITCSN-1500-9″-Black-12-3 Pc Pks | 051128-60081 | 3/0 AWG-
450 kcmil |
9″ (228,6 mm) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 3/pk, 12 pks |
| ITCSN-1500-12″-Black-10 Pcs | 054007-08896 | 3/0 AWG-
400 kcmil |
12″ (304,8 mm) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 10 |
| ITCSN-1500-12″-Black-50 Pcs | 054007-08974 | 3/0 AWG-
400 kcmil |
12″ (304,8 mm) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 50 |
| ITCSN-1500-48″-Black-5 Pcs | 054007-08905 | 3/0 AWG-
400 kcmil |
48″ (1,22 m) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 5 |
| ITCSN-1500-48″-Black-20 Pcs | 054007-08975 | 3/0 AWG-
400 kcmil |
48″ (1,22 m) | 1.50″/0.50″
(38,1/12,7 mm) |
UL 486D | Yes | Yes | 20 |
| ITCSN-1500-25′-Black-Reel | 054007-08895 | 3/0 AWG-
450 kcmil |
25′ (7,62 m) | 1.50″/0.50″
(38,1/12,7 mm) |
N/A | No | No | 1 |
| ITCSN-2000-9″-Black-10 Pcs | 054007-08900 | 250-750 kcmil | 9″ (228,6 mm) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 10 |
| ITCSN-2000-9″-Black-50 Pcs | 054007-08976 | 250-750 kcmil | 9″ (228,6 mm) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 50 |
| ITCSN-2000-12″-Black-10 Pcs | 054007-08899 | 250-750 kcmil | 12″ (304,8 mm) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 10 |
| ITCSN-2000-12″-Black-50 Pcs | 054007-08977 | 250-750 kcmil | 12″ (304,8 mm) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 50 |
| ITCSN-2000-12″-Black-12-3 Pc Pks | 051128-60082 | 250-750 kcmil | 12″ (304,8 mm) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 3/pk, 12 pks |
| ITCSN-2000-48″-Black-5 Pcs | 054007-08906 | 250-750 kcmil | 48″ (1,22 m) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 5 |
| ITCSN-2000-48″-Black-20 Pcs | 054007-08978 | 250-750 kcmil | 48″ (1,22 m) | 2.00″/0.65″
(50,8/16,5 mm) |
UL 486D | Yes | Yes | 20 |
| Order No. | UPC | Cable Size | Length | Expanded/Recovered UL Spec. Adhesive
I.D. Included |
Direct Bury | Case Qty. | ||
| ITCSN-2000-25′-Black-Reel | 054007-08898 | 250-750 kcmil | 25′ (7,62 m) | 2.00″/0.65″
(50,8/16,5 mm) |
N/A | No | No | 1 |
| ITCSN-3000-12″-Black-10 Pcs | 054007-08901 | 600-1250 kcmil | 12″ (304,8 mm) | 3.00″/1.00″
(76,2/25,4 mm) |
N/A | Yes | No | 10 |
| ITCSN-3000-12″-Black-50 Pcs | 054007-08979 | 600-1250 kcmil | 12″ (304,8 mm) | 3.00″/1.00″
(76,2/25,4 mm) |
N/A | Yes | No | 50 |
| ITCSN-3000-48″-Black-5 Pcs | 054007-08907 | 600-1250 kcmil | 48″ (1,22 m) | 3.00″/1.00″
(76,2/25,4 mm) |
N/A | Yes | No | 5 |
| ITCSN-3000-48″-Black-20 Pcs | 054007-08980 | 600-1250 kcmil | 48″ (1,22 m) | 3.00″/1.00″
(76,2/25,4 mm) |
N/A | Yes | No | 20 |
| ITCSN-4500-48″-Black-5 Pcs | 051135-37979 | 1500-
2500 kcmil |
48″ (1,22 m) | 4.50″/1.50″ (114,3/38,1 mm) | N/A | Yes | No | 5 |
| ITCSN-4500-48″-Black-20 Pcs | 054007-08981 | 1500-
2500 kcmil |
48″ (1,22 m) | 4.50″/1.50″ (114,3/38,1 mm) | N/A | Yes | No | 20 |
| ITCSN-6000-48″-Black-5 Pcs | 051135-37980 | 2.1″-4.8″ | 48″ (1,22 m) | 6.00″/1.80″ (152,4/45,7 mm) | N/A | Yes | No | 5 |
| ITCSN-6000-48″-Black-20 Pcs | 054007-08982 | 2.1″-4.8″ | 48″ (1,22 m) | 6.00″/1.80″ (152,4/45,7 mm) | N/A | Yes | No | 20 |
Specifications
| Voltage Rating | UL Rated to 600 V 3M Internal Test Rated to 1 kV |
|---|---|
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Operating Temperature | -67°F to 230°F (-55°C to 110°C) |
| Flame Retardant | No |
| RoHS 2011/65/EU | Yes |
