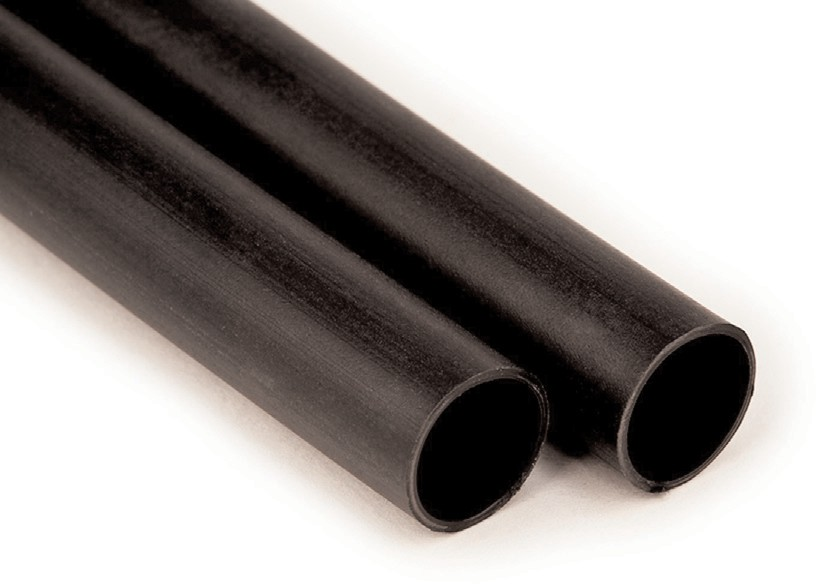

3M™ Heat Shrink Tubing EPS-400
3M™ Heat Shrink Tubing EPS-400 offers excellent environmental protection for electronic components, wire splices, wire bundles and harness breakouts. This tubing comes in a quantity of 48 feet per full carton.
3M Heat Shrink Tubing EPS-400 is a semi-rigid tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame- retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Size | Format | Case Qty. |
| EPS400-.300-6″-Black-10-10 Pc Pks | 051128-60071 | 0.300″ | 6″ (152,4 mm) pieces | 10/pk, 10 pks |
| EPS400-.300-48″-Black-12 Pcs | 051128-59735 | 0.300″ | 48″ (1,22 m) sticks | 12 pcs |
| EPS400-.350-6″-Black-10-10 Pc Pks | 051128-60072 | 0.350″ | 6″ (152,4 mm) pieces | 10/pk, 10 pks |
| EPS400-.350-48″-Black-12 Pcs | 051128-59736 | 0.350″ | 48″ (1,22 m) sticks | 12 pcs |
| EPS400-.450-6″-Black-10-10 Pc Pks | 051128-60073 | 0.450″ | 6″ (152,4 mm) pieces | 10/pk, 10 pks |
| EPS400-.450-48″-Black-12 Pcs | 051128-59737 | 0.450″ | 48″ (1,22 m) sticks | 12 pcs |
| EPS400-.700-6″-Black-10-10 Pc Pks | 051128-60074 | 0.700″ | 6″ (152,4 mm) pieces | 10/pk, 10 pks |
| EPS400-.700-48″-Black-5 Pcs | 051128-59738 | 0.700″ | 48″ (1,22 m) sticks | 5 pcs |
Specifications
| Material | Polyolefin |
|---|---|
| Color | Black |
| Shrink Ratio | 4:1 |
| Operating Temperature | -67 to 230°F (-55 to 110°C) |
| Voltage | 600 Volts Max. |
| Flame Retardant | No |
| RoHS 2011/65/EU | Yes |
