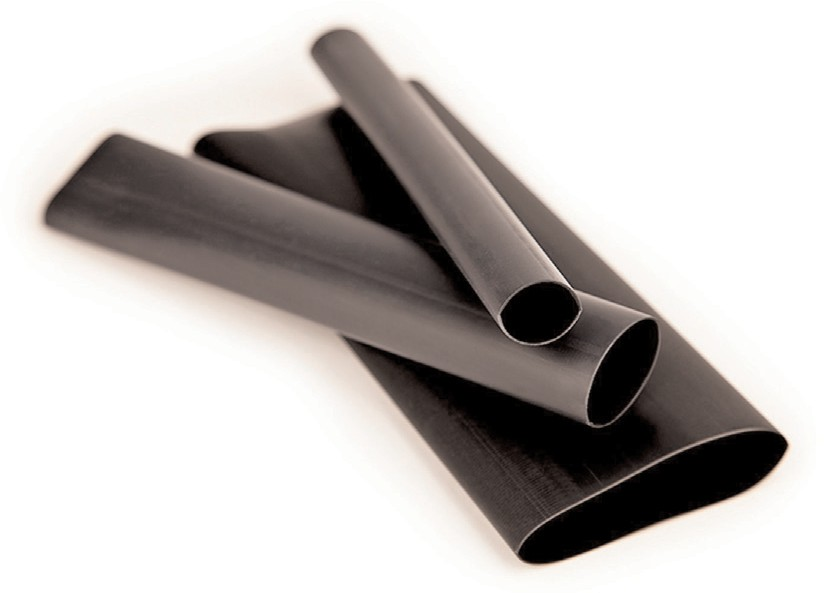

3M™ Heat Shrink Tubing EPS-200
3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Size | Format | Expanded/Recovered I.D. | Case Qty. |
| EPS200-1/8-6″-Black-10-10 Pc Pks | 051128-60057 | 1/8″ (3,18 mm) | 6″ (152,4 mm) pieces | 0.125″/0.063″ (3,18/1,60 mm) | 10/pk, 10 pks |
| EPS200-1/8-48″-Black-25 Pcs | 051128-59719 | 1/8″ (3,18 mm) | 48″ (1,22 m) sticks | 0.125″/0.063″ (3,18/1,60 mm) | 25 pcs |
| EPS200-3/16-6″-Black-10-10 Pc Pks | 051128-60059 | 3/16″ (4,75 mm) | 6″ (152,4 mm) pieces | 0.187″/0.093″ (4,75/2,36 mm) | 10/pk, 10 pks |
| EPS200-3/16-48″-Black-12 Pcs | 051128-59720 | 3/16″ (4,75 mm) | 48″ (1,22 m) sticks | 0.187″/0.093″ (4,75/2,36 mm) | 12 pcs |
| EPS200-1/4-6″-Black-10-10 Pc Pks | 051128-60056 | 1/4″ (6,35 mm) | 6″ (152,4 mm) pieces | 0.25″/0.125″ (6,35/3,18 mm) | 10/pk, 10 pks |
| EPS200-1/4-48″-Black-12 Pcs | 051128-59721 | 1/4″ (6,35 mm) | 48″ (1,22 m) sticks | 0.25″/0.125″ (6,35/3,18 mm) | 12 pcs |
| EPS200-3/8-6″-Black-10-10 Pc Pks | 051128-60061 | 3/8″ (9,53 mm) | 6″ (152,4 mm) pieces | 0.375″/0.187″ (9,53/4,75 mm) | 10/pk, 10 pks |
| EPS200-3/8-48″-Black-12 Pcs | 051128-59722 | 3/8″ (9,53 mm) | 48″ (1,22 m) sticks | 0.375″/0.187″ (9,53/4,75 mm) | 12 pcs |
| EPS200-1/2-6″-Black-10-10 Pc Pks | 051128-60055 | 1/2″ (12,7 mm) | 6″ (152,4 mm) pieces | 0.50″/0.25″ (12,70/6,35 mm) | 10/pk, 10 pks |
| EPS200-1/2-48″-Black-12 Pcs | 051128-59723 | 1/2″ (12,7 mm) | 48″ (1,22 m) sticks | 0.50″/0.25″ (12,70/6,35 mm) | 12 pcs |
| EPS200-3/4-6″-Black-10-10 Pc Pks | 051128-60060 | 3/4″ (19,0 mm) | 6″ (152,4 mm) pieces | 0.75″/0.375″ (19,05/9,53 mm) | 10/pk, 10 pks |
| EPS200-3/4-48″-Black-5 Pcs | 051128-59724 | 3/4″ (19,0 mm) | 48″ (1,22 m) sticks | 0.75″/0.375″ (19,05/9,53 mm) | 5 pcs |
| EPS200-1-6″-Black-10-10 Pc Pks | 051128-60058 | 1″ (25,4 mm) | 6″ (152,4 mm) pieces | 1.00″/0.50″ (25,40/12,70 mm) | 10/pk, 10 pks |
| EPS200-1-48″-Black-5 Pcs | 051128-59725 | 1″ (25,4 mm) | 48″ (1,22 m) sticks | 1.00″/0.50″ (25,40/12,70 mm) | 5 pcs |
| EPS200-1 1/2-6″-Black-10-3 Pc Pks | 051128-60130 | 1-1/2″ (38,1 mm) | 6″ (152,4 mm) pieces | 1.50″/0.75″ (38,10/19,05 mm) | 3/pk, 10 pks |
| EPS200-1 1/2-48″-Black-5 Pcs | 051128-59726 | 1-1/2″ (38,1 mm) | 48″ (1,22 m) sticks | 1.50″/0.75″ (38,10/19,05 mm) | 5 pcs |
| EPS200-2-48″-Black-2 Pcs | 051128-59727 | 2″ (50,8 mm) | 48″ (1,22 m) sticks | 2.00″/1.00″ (50,80/25,40 mm) | 2 pcs |
Specifications
| Material | Polyolefin |
|---|---|
| Color | Black |
| Shrink Ratio | 2:1 |
| Operating Temperature | -67 to 230°F (-55 to 110°C) |
| Voltage | 600 Volts Max. |
| Flame Retardant | No |
| RoHS 2011/65/EU | Yes |
| Specification | SAE-AMS-DTL-23053/4, Class 2 |
