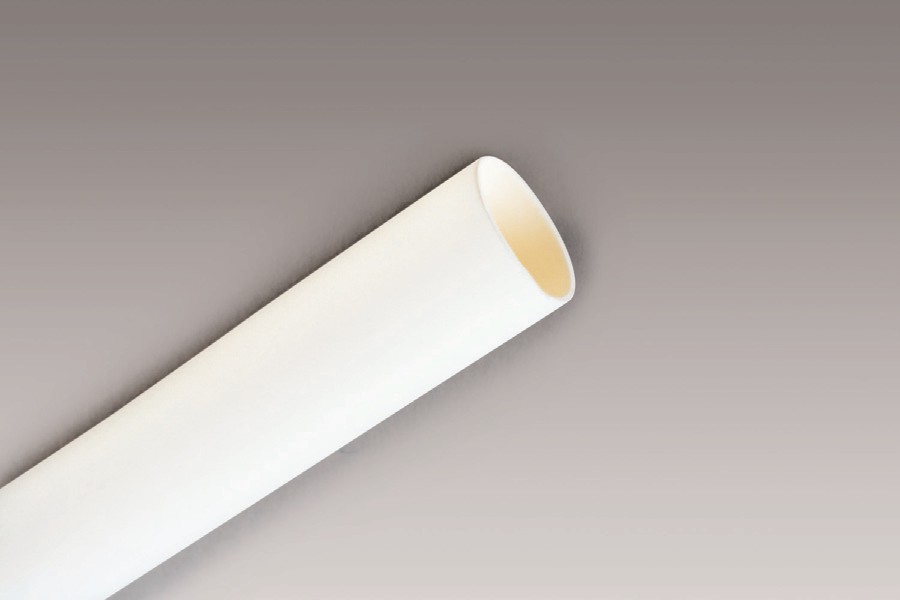

3M™ Heat Shrink Thin-Wall Tubing FP-301 (4 Inch)
Lightweight, tough and flexible. 3M™ Single Wall Tubing is the right choice for electrical insulation in many industrial and manufactured products. It’s also dependable as a lightweight wire harness, wire marking, wire bundling, component packaging and fire- resistant cover.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Color | Format | Flame Retardant | Case Qty. |
| FP301-4-48″-Black-2 Pcs | 051128-59624 | Black | 48″ (1,22 m) sticks | Yes | 2 pcs |
| FP301-4-48″-Black-12 Pcs | 051128-59909 | Black | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-4-48″-Clear-2 Pcs | 051128-59625 | Clear | 48″ (1,22 m) sticks | No | 2 pcs |
| FP301-4-50′-Black-Spool | 054007-38884 | Black | 50′ (15,24 m) spool | Yes | 1 spool |
| FP301-4-50′-Clear-Spool | 054007-38986 | Clear | 50′ (15,24 m) spool | No | 1 spool |
| FP301-4-Blue-50′ | 054007-58973 | Blue | 50′ (15,24 m) spool | Yes | 1 spool |
| FP301-4-Red-50′ | 054007-38893 | Red | 50′ (15,24 m) spool | Yes | 1 spool |
| FP301-4-Yellow-50′ | 054007-38895 | Yellow | 50′ (15,24 m) spool | Yes | 1 spool |
Specifications
| Material | Polyolefin |
|---|---|
| Shrink Ratio | 2:1 |
| Operating Temperature | -67 to 275°F (-55 to 135°C) |
| Voltage | 600 Volts Max. |
| RoHS 2011/65/EU | Yes |
| Application Specifications | SAE-AMS-DTL-23053/5, Class 1, 2; AMS-3636, AMS-3637 |
| Ordering Size | 4" (101,6 mm) |
| Expanded I.D. (Min.) | 4.00" (101,60 mm) |
| Recovered I.D. (Max.) | 2.00" (50,80 mm) |
| Recovered Wall Thickness (Nominal) | 0.055" (1,40 mm) |
