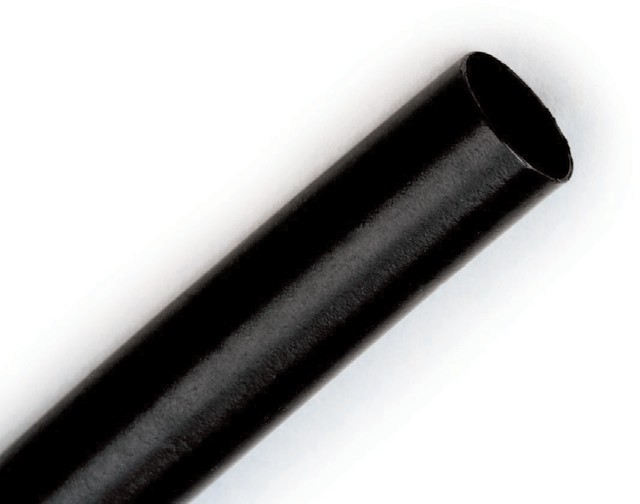

3M™ Heat Shrink Thin-Wall Tubing FP-301 (1/2 Inch)
Lightweight, tough and flexible. 3M™ Single Wall Tubing is the right choice for electrical insulation in many industrial and manufactured products. It’s also dependable as a lightweight wire harness, wire marking, wire bundling, component packaging and fire- resistant cover.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Color | Format | Flame Retardant | Case Qty. |
| FP301-1/2-6″-Black-10-10 Pc Pks | 051128-60112 | Black | 6″ (152,4 mm) pieces | Yes | 10/pk, 10 pks |
| FP301-1/2-6″-Clear-10-10 Pc Pks | 051128-60113 | Clear | 6″ (152,4 mm) pieces | No | 10/pk, 10 pks |
| FP301-1/2-6″-Black-200 Pcs | 051128-59893 | Black | 6″ (152,4 mm) pieces | Yes | 200 pcs |
| FP301-1/2-48″-Black-12 Pcs | 051128-59591 | Black | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-Black-100 Pcs | 051128-59859 | Black | 48″ (1,22 m) sticks | Yes | 100 pcs |
| FP301-1/2-48″-Blue-12 Pcs | 051128-59596 | Blue | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-Clear-12 Pcs | 051128-59592 | Clear | 48″ (1,22 m) sticks | No | 12 pcs |
| FP301-1/2-48″-Clear-100 Pcs | 051128-59854 | Clear | 48″ (1,22 m) sticks | No | 100 pcs |
| FP301-1/2-48″-Green-12 Pcs | 051128-59597 | Green | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-Red-12 Pcs | 051128-59594 | Red | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-White-12 Pcs | 051128-59593 | White | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-Yellow-12 Pcs | 051128-59595 | Yellow | 48″ (1,22 m) sticks | Yes | 12 pcs |
| FP301-1/2-48″-Blue-Hdr-12 Pcs | 051128-59673 | Blue | 48″ (1,22 m) sticks w/ Hdr Label | Yes | 12 pcs |
| FP301-1/2-48″-Clear-Hdr-12 Pcs | 051128-59669 | Clear | 48″ (1,22 m) sticks w/ Hdr Label | No | 12 pcs |
| FP301-1/2-48″-Green-Hdr-12 Pcs | 051128-59674 | Green | 48″ (1,22 m) sticks w/ Hdr Label | Yes | 12 pcs |
| FP301-1/2-48″-Red-Hdr-12 Pcs | 051128-59671 | Red | 48″ (1,22 m) sticks w/ Hdr Label | Yes | 12 pcs |
| FP301-1/2-48″-White-Hdr-12 Pcs | 051128-59670 | White | 48″ (1,22 m) sticks w/ Hdr Label | Yes | 12 pcs |
| FP301-1/2-48″-Yellow-Hdr-12 Pcs | 051128-59672 | Yellow | 48″ (1,22 m) sticks w/ Hdr Label | Yes | 12 pcs |
| FP301-1/2-25′-Black-Reel | 054007-40064 | Black | 25′ (7,62 m) reel | Yes | 1 reel |
| FP301-1/2-100′-Black-Spool | 051135-35586 | Black | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-Blue-100′ | 051135-35589 | Blue | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-100′-Clear-Spool | 051135-35591 | Clear | 100′ (30,48 m) spool | No | 3 spools |
| FP301-1/2-Green-100′ | 051135-37347 | Green | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-Red-100′ | 051135-35588 | Red | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-White-100′ | 051135-35587 | White | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-Yellow-100′ | 051135-35590 | Yellow | 100′ (30,48 m) spool | Yes | 3 spools |
| FP301-1/2-200′-Black-Spool | 054007-08496 | Black | 200′ (60,96 m) spool | Yes | 3 spools |
| FP301-1/2-200′-Clear-Spool | 054007-08530 | Clear | 200′ (60,96 m) spool | No | 3 spools |
Specifications
| Material | Polyolefin |
|---|---|
| Shrink Ratio | 2:1 |
| Operating Temperature | -67 to 275°F (-55 to 135°C) |
| Voltage | 600 Volts Max. |
| RoHS 2011/65/EU | Yes |
| Application Specifications | SAE-AMS-DTL-23053/5, Class 1, 2; AMS-3636, AMS-3637 |
| Ordering Size | 1/2" (12,7 mm) |
| Expanded I.D. (Min.) | 0.500" (12,70 mm) |
| Recovered I.D. (Max.) | 0.250" (6,35 mm) |
| Recovered Wall Thickness (Nominal) | 0.025" (0,64 mm) |
