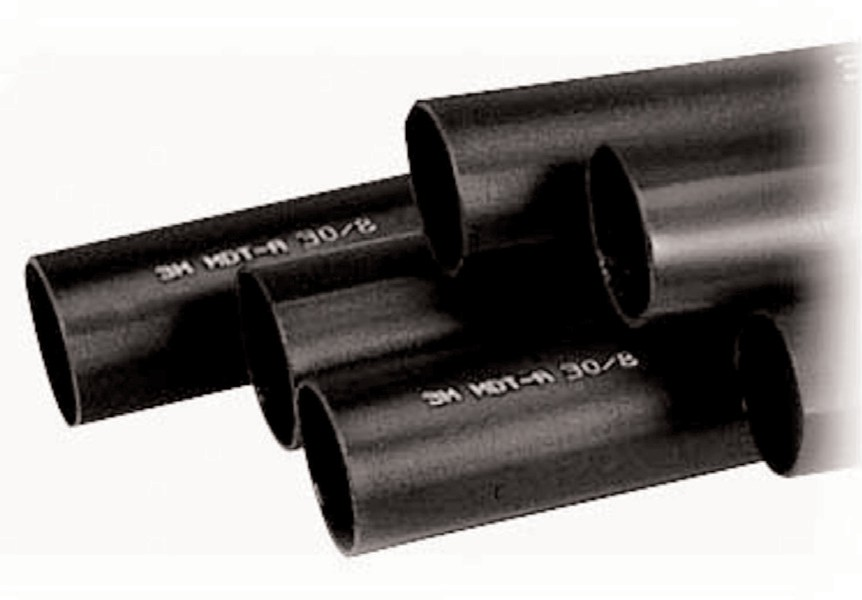

3M™ Heat Shrink Medium-Wall Flame-Retardant Cable Sleeves MDT for 1 kV
3M™ Heat Shrink Medium-Wall Flame-Retardant Cable Sleeves MDT are flame-retardant and protect against mechanical and environmental dangers, providing excellent abrasion, corrosion and chemical resistance. MDT sleeves have greater flexibility than the HDT sleeves, our heavy-wall version.
Installation of these fast-shrinking sleeves is easy with little training necessary. The 48 in (121,9 cm) lengths are unprinted and come standard with a factory-applied adhesive/sealant, a thermoplastic material that remains flexible over long periods under adverse environmental conditions. During heating, the sealant softens, bonds to underlying surfaces and fills small voids that might be present. Order in the size equivalent to expanded inside diameter required.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Typical Cable Range | Color | Format | Expanded/Recovered Adhesive
I.D. Included |
Direct Bury | Case Qty. | |
| MDT-0400-48″-Black-20 Pcs | 054007-40672 | 12-6 AWG | Black | 48″ (1,22 m) Sleeves | 0.40″/0.15″
(10,2/3,8 mm) |
Yes | No | 20 |
| MDT-0800-48″-Black-20 Pcs | 054007-40673 | 8-3 AWG | Black | 48″ (1,22 m) Sleeves | 0.80″/0.22″
(20,3/5,6 mm) |
Yes | No | 20 |
| MDT-1100-48″-Black-20 Pcs | 054007-40674 | 2-2/0 AWG | Black | 48″ (1,22 m) Sleeves | 1.10″/0.37″
(27,9/9,4 mm) |
Yes | No | 20 |
| MDT-1300-48″-Black-20 Pcs | 054007-40675 | 1-4/0 AWG | Black | 48″ (1,22 m) Sleeves | 1.30″/0.43″
(33,0/10,9 mm) |
Yes | No | 20 |
| MDT-1500-48″-Black-20 Pcs | 054007-40676 | 1/0 AWG-250 kcmil | Black | 48″ (1,22 m) Sleeves | 1.50″/0.50″
(38,1/12,7 mm) |
Yes | No | 20 |
| MDT-1700-48″-Black-20 Pcs | 054007-40677 | 4/0 AWG-400 kcmil | Black | 48″ (1,22 m) Sleeves | 1.70″/0.60″
(43,2/15,2 mm) |
Yes | No | 20 |
| MDT-2000-48″-Black-15 Pcs | 054007-40678 | 300-500 kcmil | Black | 48″ (1,22 m) Sleeves | 2.00″/0.75″
(50,8/19,1 mm) |
Yes | No | 15 |
| MDT-3000-48″-Black-15 Pcs | 054007-40679 | 600-1250 kcmil | Black | 48″ (1,22 m) Sleeves | 3.00″/1.00″
(76,2/25,4 mm) |
Yes | No | 15 |
| MDT-4300-48″-Black-10 Pcs | 054007-40680 | 1000-2500 kcmil | Black | 48″ (1,22 m) Sleeves | 4.30″/1.50″ (109,2/38,1 mm) | Yes | No | 10 |
Specifications
| Voltage Rating | Meets Mil Spec 600 V Rating UL Rated to 600 Volts |
|---|---|
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Operating Temperature | -67°F to 230°F (-55°C to 110°C) |
| Minimum Shrink Temperature | 250°F (121°C) |
| Flame Retardant | Yes |
| RoHS 2011/65/EU | Yes |
| Application Specifications | ABS; SAE-AMS-DTL- 23053/15, Class 2 |
