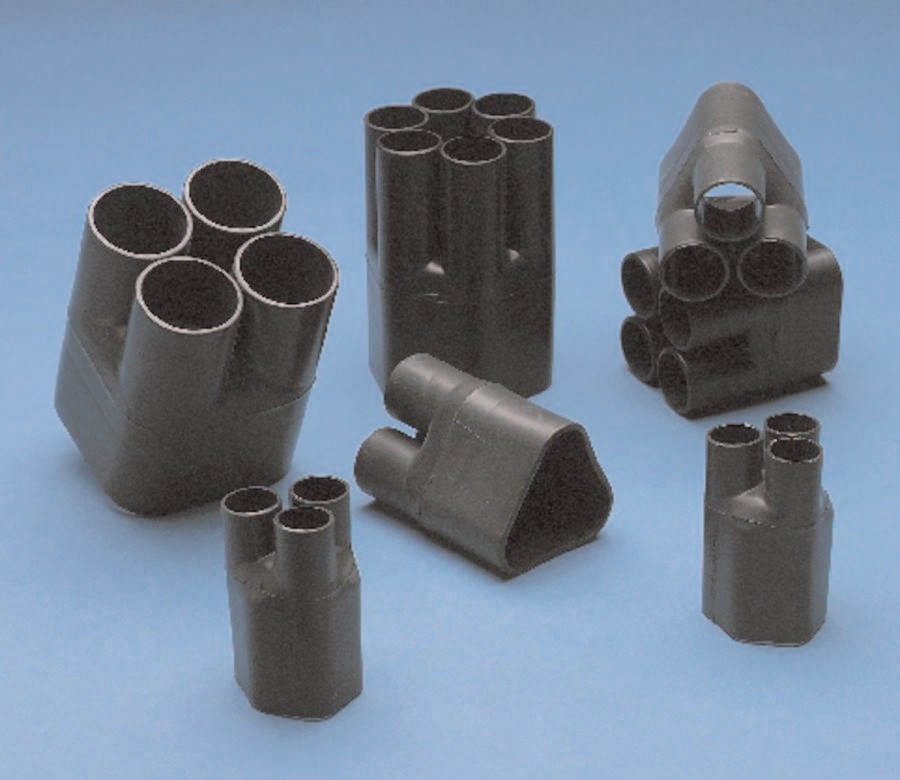

3M™ Heat Shrink Heavy Duty Breakout Boots HDBB
3M™ Heat Shrink Heavy Duty Breakout Boots HDBB provide strain relief and environmental/mechanical protection for breakouts in multiconductor armored or sheathed cables. This style is designed for two to six conductors.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Outlet | Cable End, Expanded/Recovered | Conductor Legs, Expanded/Recovered | Case Qty. |
| HDBB-205-1-250 | 054007-58793 | 2-way | 0.80″/0.37″ (20,3/9,4 mm) | 0.33″/0.11″ (8,4/2,8 mm) | 1 |
| HDBB-210-1-250 | 051135-35992 | 2-way | 1.20″/0.60″ (30,5/15,2 mm) | 0.50″/0.17″ (12,7/4,3 mm) | 1 |
| HDBB-220-1-250 | 051138-46654 | 2-way | 1.90″/0.90″ (48,3/22,9 mm) | 0.75″/0.30″ (19,1/7,6 mm) | 1 |
| HDBB-230-1-250 | 051135-35993 | 2-way | 3.00″/1.50″ (76,2/38,1 mm) | 1.45″/0.50″ (36,8/12,7 mm) | 1 |
| HDBB-310-1-250 | 051135-35994 | 3-way | 0.90″/0.36″ (22,9/9,1 mm) | 0.33″/0.12″ (8,4/3,1 mm) | 1 |
| HDBB-320-1-250 | 051135-35995 | 3-way | 1.20″/0.50″ (30,5/12,7 mm) | 0.50″/0.16″ (12,7/4,1 mm) | 1 |
| HDBB-321-1-250 | 051135-35996 | 3-way | 1.50″/0.69″ (38,1/17,5 mm) | 0.65″/0.18″ (16,5/4,6 mm) | 1 |
| HDBB-325-1-250 | 051135-35997 | 3-way | 1.70″/0.90″ (43,2/22,9 mm) | 0.82″/0.30″ (20,8/7,6 mm) | 1 |
| HDBB-335-1-250 | 051135-03409 | 3-way | 2.40″/1.40″ (61,0/35,6 mm) | 1.25″/0.50″ (31,8/12,7 mm) | 1 |
| HDBB-340-1-250 | 051135-35998 | 3-way | 3.20″/2.00″ (81,3/50,8 mm) | 1.40″/0.75″ (35,6/19,1 mm) | 1 |
| HDBB-345-1-250 | 054007-58794 | 3-way | 4.90″/2.32″ (124,5/58,9 mm) | 2.00″/1.00″ (50,8/25,4 mm) | 1 |
| HDBB-405-1-250 | 054007-58795 | 4-way | 0.90″/0.43″ (22,9/10,9 mm) | 0.28″/0.11″ (7,1/2,8 mm) | 1 |
| HDBB-410-1-250 | 051135-35999 | 4-way | 1.25″/0.80″ (31,8/20,3 mm) | 0.50″/0.19″ (12,7/4,8 mm) | 1 |
| HDBB-415-1-250 | 054007-58855 | 4-way | 1.75″/0.98″ (44,5/24,9 mm) | 0.79″/0.28″ (20,1/7,1 mm) | 1 |
| HDBB-420-1-250 | 051135-36000 | 4-way | 2.35″/1.00″ (59,7/25,4 mm) | 1.00″/0.35″ (25,4/8,9 mm) | 1 |
| HDBB-425-1-250 | 054007-58797 | 4-way | 2.65″/1.40″ (67,3/35,6 mm) | 1.20″/0.53″ (30,5/13,5 mm) | 1 |
| HDBB-430-1-250 | 054007-58798 | 4-way | 5.25″/3.00″ (133,4/76,2 mm) | 1.35″/0.55″ (34,3/14,0 mm) | 1 |
| HDBB-505-1-250 | 051138-46648 | 5-way | 2.36″/0.96″ (59,9/24,4 mm) | 1.18″/0.29″ (30,0/7,4 mm) | 1 |
| HDBB-605-1-250 | 051135-36001 | 6-way | 2.39″/1.45″ (60,7/36,8 mm) | 0.80″/0.35″ (20,3/8,9 mm) | 1 |
Specifications
| Material | Semi-Rigid Flame Retardant Polyolefin |
|---|---|
| RoHS 2011/65/EU | Yes |
| Application Specification | MIL-I-81765-1 |
