3M™ Bus Bar Tubing BBI-A Series for 25 kV Bus Bar Size Ranges

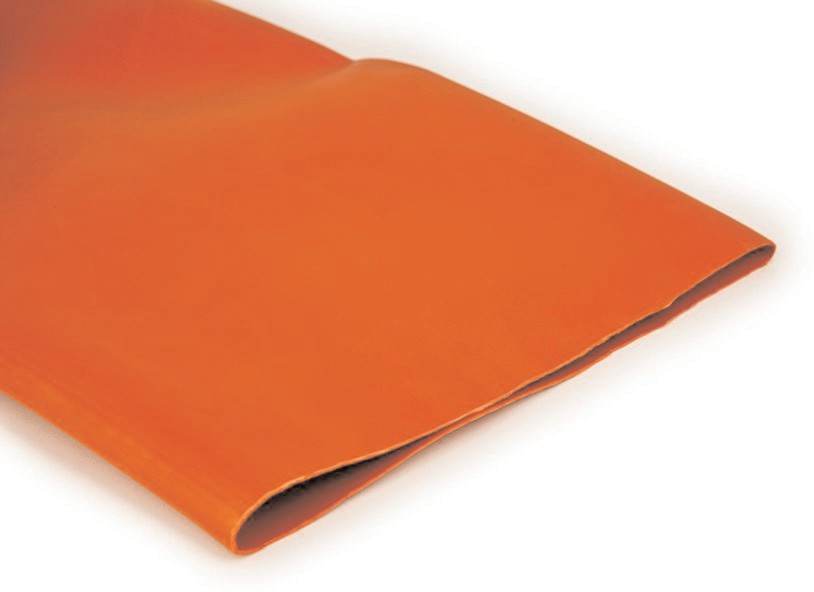

Get durable and reliable protection that helps prevent failures and downtime in applications from 5-35 kV. 3M™ Heat Shrinkable Bus Bar Tubing BBI-A covers and insulates rectangular, square or round bus bars, resists splitting and solvents, and provides excellent tracking resistance.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Bar Circum. (A) | Rectangular Dimension (B) | Square Dimension (C) | Round Diameter (D) | Linear Ft/Cs |
| BBI-3A-Red-20′ Roll | 051135-35726 | 3.28″-3.56″
(83-90 mm) |
1-1/2″ x 1/4″ to 1-1/2″ x 3/8″ (38 x 6 to 38 x 10 mm) | Measure circumference | 1-1/8″
(29 mm) |
20′ |
| BBI-3A-Red-50′ Roll | 051135-35727 | 3.28″-3.56″
(83-90 mm) |
1-1/2″ x 1/4″ to 1-1/2″ x 3/8″ (38 x 6 to 38 x 10 mm) | Measure circumference | 1-1/8″
(29 mm) |
50′ |
| BBI-4A-Red-20′ Roll | 051135-35728 | 5.43″-5.80″
(138-147 mm) |
2-1/2″ x 3/8″ to 2-1/2″ x 5/8″ (64 x 10 to 64 x 16 mm) | Measure circumference | 1-3/4″
(44 mm) |
20′ |
| BBI-4A-Red-50′ Roll | 051135-35729 | 5.43″-5.80″
(138-147 mm) |
2-1/2″ x 3/8″ to 2-1/2″ x 5/8″ (64 x 10 to 64 x 16 mm) | Measure circumference | 1-3/4″
(44 mm) |
50′ |
| BBI-5A-Red-20′ Roll | 051135-35730 | 6.67″-7.18″
(169-182 mm) |
3″ x 5/8″ to 3″ x 3/4″ (76 x 16 to 76 x 19 mm) | Measure circumference | 2-1/8″ to 2-1/4″
(54 to 57 mm) |
20′ |
| BBI-5A-Red-50′ Roll | 051135-35731 | 6.67″-7.18″
(169-182 mm) |
3″ x 5/8″ to 3″ x 3/4″ (76 x 16 to 76 x 19 mm) | Measure circumference | 2-1/8″ to 2-1/4″
(54 to 57 mm) |
50′ |
| BBI-6A-Red-20′ Roll | 051135-35732 | 7.57″-8.43″
(192-214 mm) |
3-1/2″ x 1/2″ to 4″ x 1/4″ (89 x 13 to 102 x 6 mm) | Measure circumference | 2-1/2 to 2-5/8″ (64 to 67 mm) | 20′ |
| BBI-6A-Red-50′ Roll | 051135-35733 | 7.57″-8.43″
(192-214 mm) |
3-1/2″ x 1/2″ to 4″ x 1/4″ (89 x 13 to 102 x 6 mm) | Measure circumference | 2-1/2″ to 2-5/8″
(64 to 67 mm) |
50′ |
| BBI-7A-Red-20′ Roll | 051135-35734 | 8.28″-10.44″
(210-265 mm) |
4″ x 1/4″ to 5″ x 3/8″ (102 x 6 to 127 x 10 mm) | 2-1/2″ x 2-1/2″
(64 x 64 mm) |
2-3/4″ to 3-1/4″
(70 to 83 mm) |
20′ |
| BBI-7A-Red-50′ Roll | 051135-35735 | 8.28″-10.44″
(210-265 mm) |
4″ x 1/4″ to 5″ x 3/8″ (102 x 6 to 127 x 10 mm) | 2-1/2″ x 2-1/2″
(64 x 64 mm) |
2-3/4″ to 3-1/4″
(70 to 83 mm) |
50′ |
| BBI-8A-Red-20′ Roll | 051135-35736 | 10.29″-12.88″
(261-327 mm) |
5″ x 1/4″ to 6″ x 3/4″ (127 x 6 to 152 x 19 mm) | 3″ x 3″
(76 x 76 mm) |
3-3/8″ to 4″
(86 to 102 mm) |
20′ |
| BBI-8A-Red-50′ Roll | 051135-35737 | 10.29″-12.88″
(261-327 mm) |
5″ x 1/4″ to 6″ x 3/4″ (127 x 6 to 152 x 19 mm) | 3″ x 3″
(76 x 76 mm) |
3-3/8 to 4″
(86 to 102 mm) |
50′ |
| BBI-9A-Red-20′ Roll | 051135-35876 | 12.29″-15.31″
(312-389 mm) |
6″ x 1/4″ to 7″ x 3/4″ (152 x 6 to 178 x 19 mm) | 3-1/2″ x 3-1/2″ to 4″ x 4″ (89 x 89 to 102 x 102 mm) | 4″ to 4-7/8″
(102 to 124 mm) |
20′ |
| BBI-9A-Red-50′ Roll | 051135-35877 | 12.29″-15.31″
(312-389 mm) |
6″ x 1/4″ to 7″ x 3/4″ (152 x 6 to 178 x 19 mm) | 3-1/2″ x 3-1/2″to 4″ x 4″
(89 x 89 to 102 x 102 mm) |
4″ to 4-7/8″
(102 to 124 mm) |
50′ |
| BBI-10A-Red-20′ Roll | 051135-35878 | 15.43″-19.79″
(392-503 mm) |
8″ x 1/4″ to 9″ x 3/4″ (203 x 6 to 229 x 19 mm) | 5″ x 5″ (127×127 mm) | 5″ to 6-1/4″
(127 to 159 mm) |
20′ |
| BBI-10A-Red-50′ Roll | 051135-35879 | 15.43″-19.79″
(392-503 mm) |
8″ x 1/4″ to 9″ x 3/4″ (203 x 6 to 229 x 19 mm) | 5″ x 5″ (127×127 mm) | 5″ to 6-1/4″
(127 to 159 mm) |
50′ |
Specifications
| Material | Cross-Linked Polyolefin |
|---|---|
| Max. Operating Temperature | 230°F (110°C) |
| Voltage Rating | 25 kV |
| BIL | 125 V |
| Flame Retardant | Yes |
| RoHS 2011/65/EU | Yes |
| Specification | ASTM-D-257, 149, 150, 2303; IEC 216; ANSI/IEEE Std C37.20 |
