3M™ Bus Bar Tubing BBI-A Series for 5-15 kV Bus Bar Size Ranges

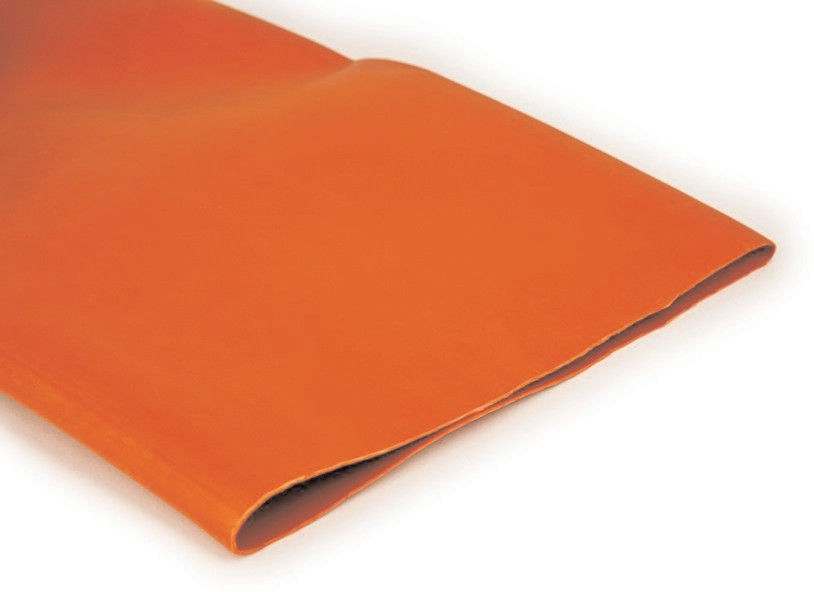

Get durable and reliable protection that helps prevent failures and downtime in applications from 5-35 kV. 3M™ Heat Shrinkable Bus Bar Tubing BBI-A covers and insulates rectangular, square or round bus bars, resists splitting and solvents, and provides excellent tracking resistance.
Brand: 3M
Get a Quote Download Spec Sheet PDF| Order No. | UPC | Bar Circum. (A) | Rectangular Dimension (B) | Square Dimension (C) | Round Diameter (D) | Linear Ft/Cs |
| BBI-3A-Red-20′ Roll | 051135-35726 | 3.28″-5.57″
(83-141 mm) |
1-1/2″ x 1/4″ to 2-1/2″ x 1/2″ (38 x 6 to 64 x 13 mm) | 1″ x 1″ to 1-1/2″ x 1-1/2″ (25 x 25 to 38 x 38 mm) | 1-1/8″ to 1-3/4″
(29 to 44 mm) |
20′ |
| BBI-3A-Red-50′ Roll | 051135-35727 | 3.28″-5.57″
(83-141 mm) |
1-1/2″ x 1/4″ to 2-1/2″ x 1/2″ (38 x 6 to 64 x 13 mm) | 1″ x 1″ to 1-1/2″ x 1-1/2″ (25 x 25 to 38 x 38 mm) | 1-1/8″ to 1-3/4″
(29 to 44 mm) |
50′ |
| BBI-4A-Red-20′ Roll | 051135-35728 | 5.43″-8.86″
(138-225 mm) |
2-1/2″ x 3/8″ to 4″ x 3/4″ (64 x 10 to 102 x 19 mm) | 2″ x 2″
(51 x 51 mm) |
1-3/4″ to 2-3/4″
(44 to 70 mm) |
20′ |
| BBI-4A-Red-50′ Roll | 051135-35729 | 5.43″-8.86″
(138-225 mm) |
2-1/2″ x 3/8″ to 4″ x 3/4″ (64 x 10 to 102 x 19 mm) | 2″ x 2″
(51 x 51 mm) |
1-3/4″ to 2-3/4″
(44 to 70 mm) |
50′ |
| BBI-5A-Red-20′ Roll | 051135-35730 | 6.67″-10.86″
(169-276 mm) |
3″ x 5/8″ to 5″ x 3/4″ (76 x 16 to 127 x 19 mm) | 2″ x 2″ to 2-1/2″ x 2-1/2″ (51 x 51 to 64 x 64 mm) | 2-1/8″ to 3-3/8″
(54 to 86 mm) |
20′ |
| BBI-5A-Red-50′ Roll | 051135-35731 | 6.67″-10.86″
(169-276 mm) |
3″ x 5/8″ to 5″ x 3/4″ (76 x 16 to 127 x 19 mm) | 2″ x 2″ to 2-1/2″ x 2-1/2″ (51 x 51 to 64 x 64 mm) | 2-1/8″ to 3-3/8″
(54 to 86 mm) |
50′ |
| BBI-6A-Red-20′ Roll | 051135-35732 | 7.57″-12.86″
(192-327 mm) |
3-1/2″ x 1/2″ to 6″ x 3/4″ (89 x 13 to 152 x 19 mm) | 2-1/2″ x 2-1/2″ to 3″ x 3″ (64 x 64 to 76 x 76 mm) | 2-1/2″ to 4″
(64 to 102 mm) |
20′ |
| BBI-6A-Red-50′ Roll | 051135-35733 | 7.57″-12.86″
(192-327 mm) |
3-1/2″ x 1/2″ to 6″ x 3/4″ (89 x 13 to 152 x 19 mm) | 2-1/2″ x 2-1/2″ to 3″ x 3″ (64 x 64 to 76 x 76 mm) | 2-1/2″ to 4″
(64 to 102 mm) |
50′ |
| BBI-7A-Red-20′ Roll | 051135-35734 | 8.28″-13.00″
(210-330 mm) |
4″ x 1/4″ to 6″ x 3/4″ (102 x 6 to 152 x 19 mm) | 2-1/2″ x 2-1/2″ to 3″ x 3″ (64 x 64 to 76 x 76 mm) | 2-3/4″ to 4-1/8″
(70 to 105 mm) |
20′ |
| BBI-7A-Red-50′ Roll | 051135-35735 | 8.28″-13.00″
(210-330 mm) |
4″ x 1/4″ to 6″ x 3/4″ (102 x 6 to 152 x 19 mm) | 2-1/2″ x 2-1/2″ to 3″ x 3″ (64 x 64 to 76 x 76 mm) | 2-3/4″ to 4-1/8″
(70 to 105 mm) |
50′ |
| BBI-8A-Red-20′ Roll | 051135-35736 | 10.29″-16.43″
(261-417 mm) |
5″ x 1/4″ to 8″ x 3/8″ (127 x 6 to 203 x 10 mm) | 3″ x 3″ to 4″ x 4″
(76 x 76 to 102 x 102 mm) |
3-3/8″ to 5-1/8″
(86 to 130 mm) |
20′ |
| BBI-8A-Red-50′ Roll | 051135-35737 | 10.29″-16.43″
(261-417 mm) |
5″ x 1/4″ to 8″ x 3/8″ (127 x 6 to 203 x 10 mm) | 3″ x 3″ to 4″ x 4″
(76 x 76 to 102 x 102 mm) |
3-3/8″ to 5-1/8″
(86 to 130 mm) |
50′ |
| BBI-9A-Red-20′ Roll | 051135-35876 | 12.29″-19.23″
(312-488 mm) |
6″ x 1/4″ to 9″ x 3/4″ (152 x 6 to 229 x 19 mm) | 3-1/2″ x 3-1/2″ to 5″ x 5″ (89 x 89 to 127 x 127 mm) | 4″ to 6-1/8″
(102 to 156 mm) |
20′ |
| BBI-9A-Red-50′ Roll | 051135-35877 | 12.29″-19.23″
(312-488 mm) |
6″ x 1/4″ to 9″ x 3/4″ (152 x 6 to 229 x 19 mm) | 3-1/2″ x 3-1/2″ to 5″ x 5″ (89 x 89 to 127 x 127 mm) | 4″ to 6-1/8″
(102 to 156 mm) |
50′ |
| BBI-10A-Red-20′ Roll | 051135-35878 | 15.43″-24.14″
(392-612 mm) |
8″ x 1/4″ to 10″ x 3/4″ (203 x 6 to 254 x 19 mm) | 5″ x 5″ to 6″ x 6″
(127 x 127 to 152 x 152 mm) |
5″ to 7-5/8″
(127 to 194 mm) |
20′ |
| BBI-10A-Red-50′ Roll | 051135-35879 | 15.43″-24.14″
(392-612 mm) |
8″ x 1/4″ to 10″ x 3/4″ (203 x 6 to 254 x 19 mm) | 5″ x 5″ to 6″ x 6″
(127 x 127 to 152 x 152 mm) |
5″ to 7-5/8″
(127 to 194 mm) |
50′ |
Specifications
| Material | Cross-Linked Polyolefin |
|---|---|
| Max. Operating Temperature | 230°F (110°C) |
| Voltage Rating | 5-15 kV |
| BIL | 110 V |
| Flame Retardant | Yes |
| RoHS 2011/65/EU | Yes |
| Specification | ASTM-D-257, 149, 150, 2303; IEC 216; ANSI/IEEE Std C37.20 |
