EPC Circuit Breakers and Enclosures with Interlocked Arktite Receptacles
EPC Circuit Breakers and Enclosures with Interlocked Arktite Receptacles

EPC Circuit Breakers and Enclosures with Interlocked Arktite Receptacles Features:

  • Mechanical interlock mechanism for dead front construction
  • Receptacles are mechanically interlocked with circuit breakers to provide disconnect means, short circuit protection and thermal time delay overload protection

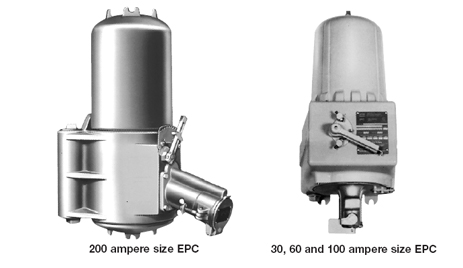

  • A spring door receptacle, located at bottom of 30, 60 and 100 ampere units and at front of 200 ampere units, is mechanically interlocked with the circuit breaker operating mechanism for maximum safety
  • Plug and receptacle contacts cannot be made or broken under load. The circuit breaker cannot be closed until the plug is fully inserted and the plug cannot be withdrawn unless the breaker is open
  • Operating handles can be padlocked in either “ON” or “OFF” positions. Breakers are trip-free of the handles and will open under short circuit or overload even if the handle is locked in the “ON” position
  • Quick installation and leveling is provided by the three-point mounting arrangement which has one keyhole slot at top and two open slots at bottom
  • Bodies have four taper-tapped conduit hubs with integral bushings. Two are located at top and two directly below. Sizes are as shown in the listings.

Certifications and Compliances:

  • NEC:
    • Class I, Division 1 and 2, Groups C, D
    • Class II, Division 1 and 2, Groups F, G
    • Class III
  • NEMA: 3, 7CD, 9FG, 12
  • ANSI/UL Standard: 1010
  • CEC:
    • Class I, Division 1 and 2, Groups C, D
    • Class II, Division 1 and 2, Group G
    • Class III
    • Encl. 3, 4

Download the EPC Circuit Breakers and Enclosures with Interlocked Arktite Receptacles spec sheet below or call 714.835.6211 for more information.

Get a Quote Download Spec Sheet PDF
