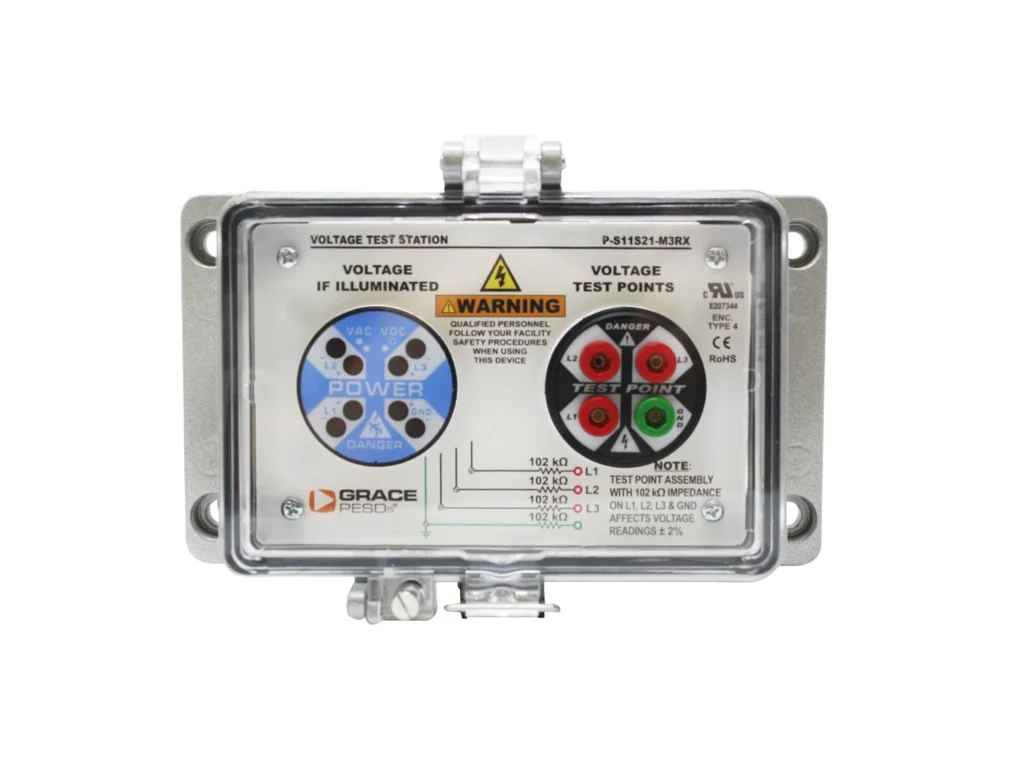

P-S11S21-M3RX
Voltage Test Station
Voltage Test Station with Multi-Environment Flashing Voltage Indicator and Safe-Test Point, Horizontal Mount, UL Type 4 Housing
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number |
P-S11S21-M3RX P-S11S21-M3RX-V* |
|---|---|
| Description | Voltage Test Station |
| Voltage Indicator | R-3W2 Flashing LEDs, Class I Div 2 |
| Safe-Test Point | R-3MT |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, M Housing Standard Mount: L: 6.50 (165.0) x W: 3.78 (96.0) x D: 2.50 (64.0) |
| Operational & Storage Temperature Range | Operational: -20ºC to +55ºC Storage: -45ºC to +85ºC |
| UL Rated AC Operational Range | Voltage Indicator: 40 - 600 VAC Test Point: 0 - 600 VAC 50/60/400Hz |
| UL Rated DC Operational Range | Voltage Indicator: 30 - 600 VDC Test Point: 0 - 600 VDC |
| Internal Resistance | 102 kΩ in series on each input wire to respective output test jack (L1, L2, L3, GND) |
| Correction Factor | Voltage Actual = 1.02 x Test Point voltage reading with a 10MΩ meter (measured voltage reads 2% less than actual due to internal impedance protection of the PESD) |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000V, UL-1452 |
| Environmental Ratings | UL Type 4, 4X, 12 (dependent on housing specified) IP65 |
| UL File Number/ CCN | E256847 / NKCR, NKCR7 (Voltage Indicator, Test Point) E311256 / PICQ, PICQ7 (Voltage Indicator, Test Point) E207344 / NITW, NITW2 (Housing) |
| Certification Details | UL Recognized, CE, RoHS |
