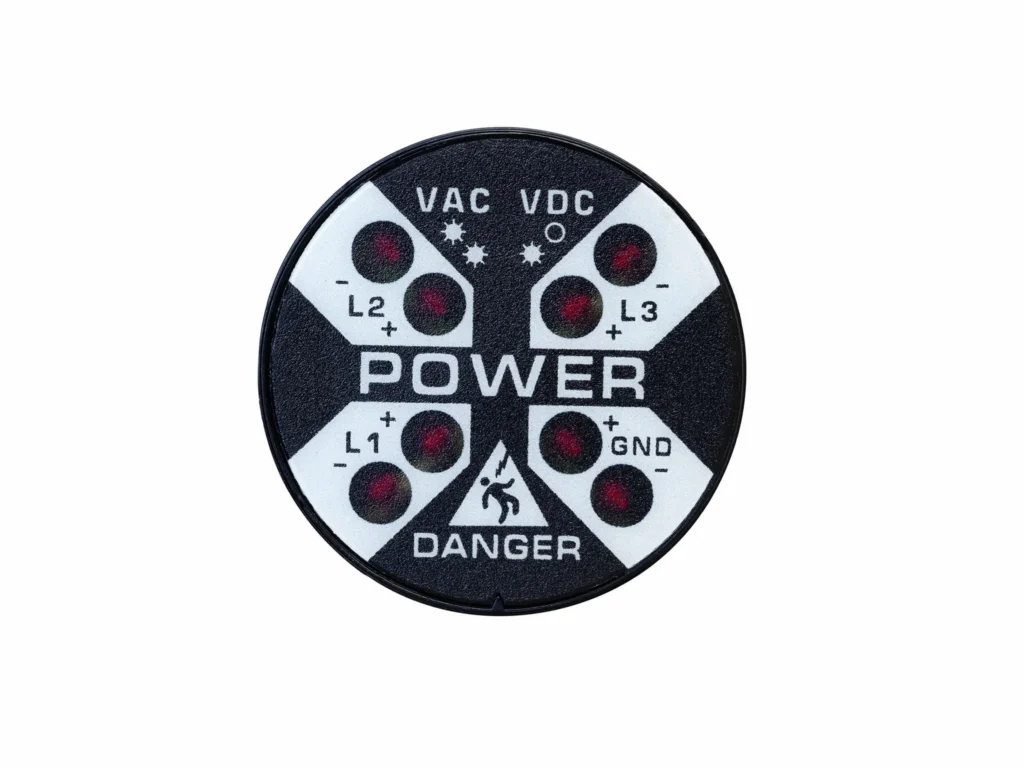

R-3W-SR
Voltage Indicator with Flashing LEDs
Specifications
| Product Number | R-3W-SR R-3W-SR-KB* |
|---|---|
| Description | Voltage Indicator |
| Voltage Indicator | Non-Flashing LEDs |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, One 30mm Knockout or One 43mm Through Hole Low Profile Bezel Mount* |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to + 85°C |
| UL Rated AC Operational Range | 35 - 600 VAC 50/60/400Hz, |
| UL Rated DC Operational Range | 30 - 1000 VDC |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Lead Connections | 3 Phase, 4-Wire |
| Environmental Ratings | UL Type 4, 4X, 12, 13 IP67 |
| File Number/CCN | E256847 / NKCR, NKCR7 E311256 / PICQ, PICQ7 |
| Certifications | cULus Listed, CE, RoHS |
