R-3WMT1K-LMF
Voltage Indicator and 1000V Safe-Test Point Combination Unit

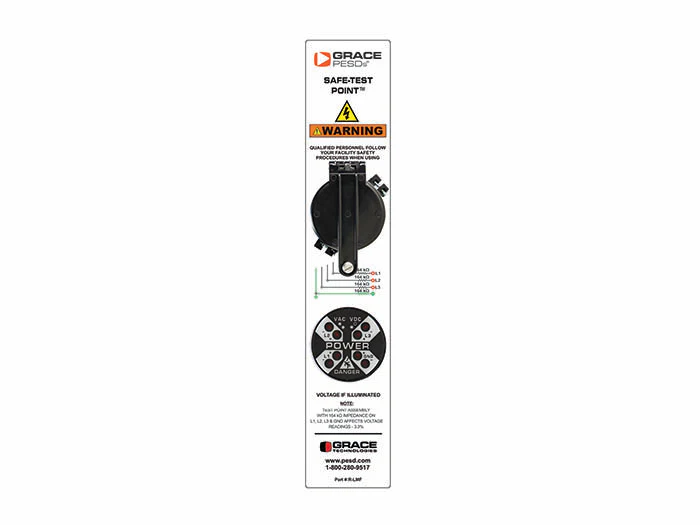

Voltage Indicator (R-3W) and 1000V Safe-Test Point (R-3MT-1K) Combination Unit with Flange Warning Label
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3WMT1K-LMH* R-3WMT1K-LMF* |
|---|---|
| Description | R-3W Series Voltage Indicator and Safe-Test PointTM Combination |
| Voltage Indicator | R-3W Flashing LEDs |
| Safe-Test Point | R-3MT-1K |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, Two 30mm Knockouts |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to +85°C |
| UL Rated AC Operational Range | Voltage Indicator: 40 - 600 VAC Safe-Test PointTM: 0 - 1000 VAC 50/60/400Hz |
| UL Rated DC Operational Range | Voltage Indicator: 30 - 1000 VDC Safe-Test PointTM: 0 - 1000 VDC |
| Internal Resistance | 164 kΩ in series on each input wire to respective output test jack (L1, L2, L3, GND) |
| Correction Factor | Voltage Actual = 1.033 x Test Point voltage reading with a 10MΩ meter (measured voltage reads 3.3% less than actual due to internal impedance protection of the PESD) |
| Wire/Wiring Specifications | Voltage Indicator: PVC Insulated with Nylon Jacket, 8ft, 18 AWG Wire, 90°C @ 1000V, UL-1452 Safe-Test PointTM: PVC Insulated with Nylon Jacket, 8ft, 14 AWG Wire, 90°C @ 1000 Volts, UL-1452 |
| Environmental Ratings | Voltage Indicators: UL Type 4, 4X, 12, 13 Safe-Test PointTM: UL Type 12, 13 |
| File Number/CCN | E256847 / NKCR, NKCR7 (Voltage Indicator, Test Point) E311256/PICQ, PICQ7 (Voltage Indicator, Test Point) |
| Certifications | cULus Listed, CE, RoHS CAT III 1000V, CAT IV 600V (Voltage Indicator) CAT III 1000V, CAT IV 1000V (Test Point) |
