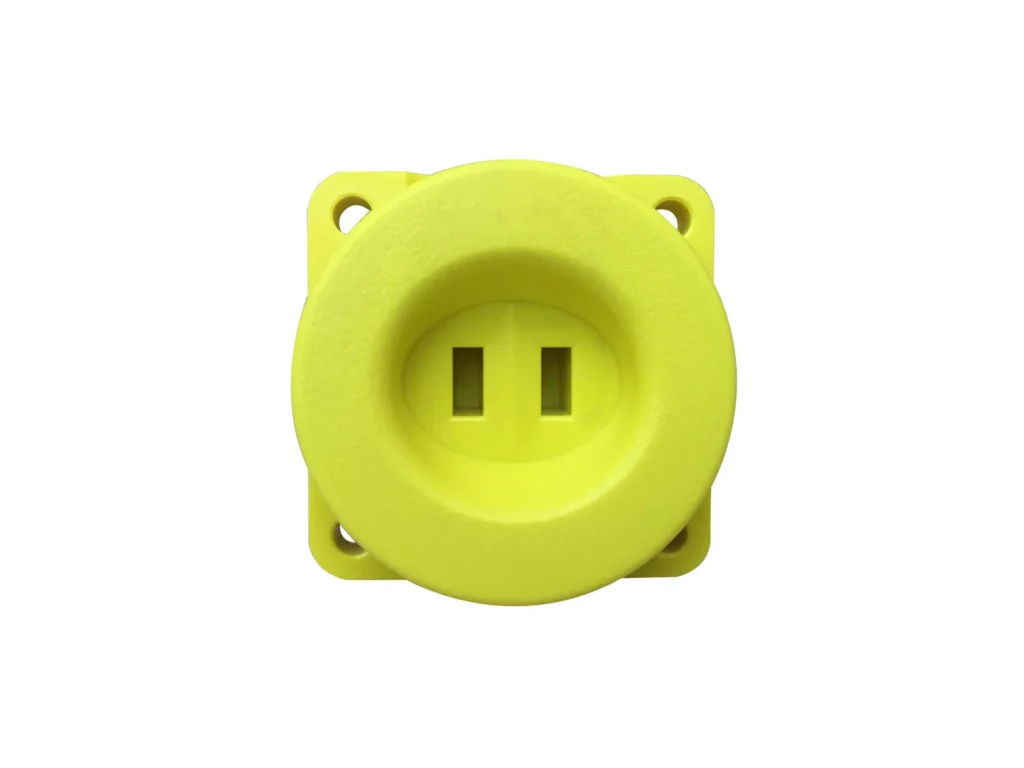

R-3K
Non-Contact Voltage Portal Pass-Thru Device
Pass-Thru, Non-Contact Voltage Portal
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3K R-3K-KIT* |
|---|---|
| Description | R-3K Pass-Through |
| Voltage Indicator | N/A |
| Voltage Type | AC |
| Mounting Location & Installation | External Mounting One 30mm Knockout Standard Mount |
| Operational & Storage Temperature Range | Operational: -20°C to +60°C Storage: Not Available |
| UL Rated AC Operational Range | 1000 VAC Maximum - Minimum voltage sensing value vary by the type and class of NCVD pen used |
| UL Rated DC Operational Range | N/A |
| Wire/Wiring Specifications | Accepts wires from 18AWG - 12AWG |
| Lead Connections | R-3K used in conjunction with up to 3 live leads |
| Pollution Degree | 2 |
| Chemical Resistance | Characteristics of polycarbonate material apply (see Voltage Portal Chemical Resistance Application Note for more details) |
| Environmental Ratings | UL Type 4, 4X, 12 |
| File Number/CCN | E311256 / PICQ, PICQ7 |
| Certifications | cULus Listed, CE, RoHS |
