R-3D2

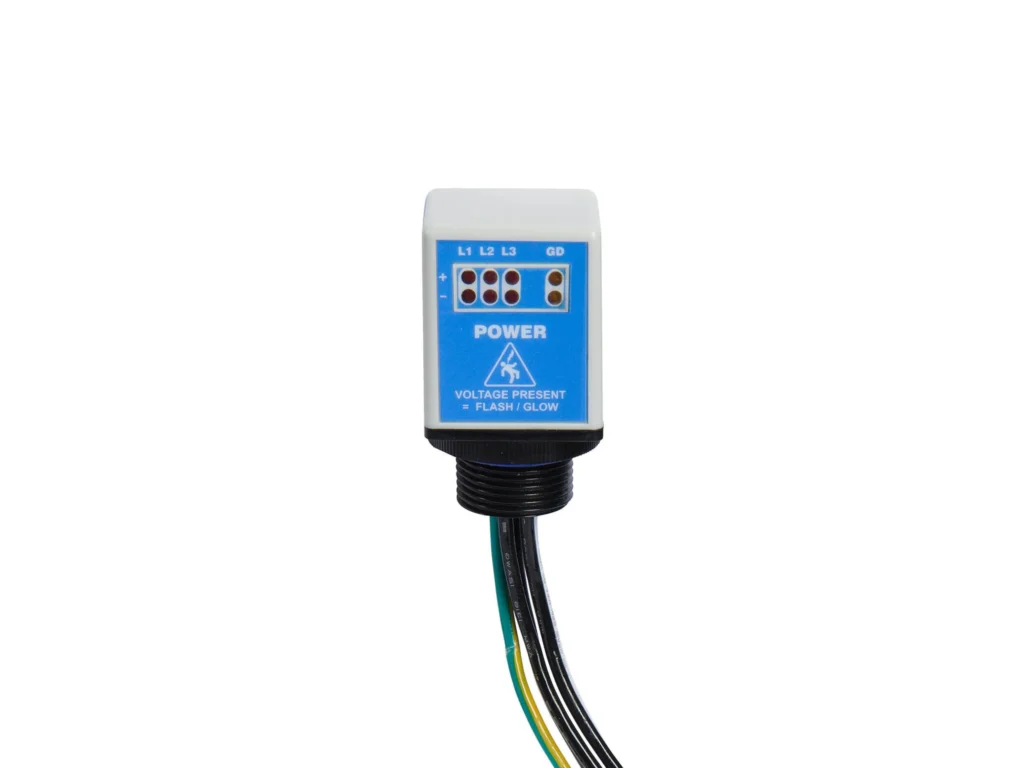

Flex Mount Voltage Indicator
Flex Mount Voltage Indicator with Flashing LEDs
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3D2 R-3D2-SR R-3D2-W5 R-3D2-SR5 |
|---|---|
| Description | Flex-Mount Voltage Indicator |
| Voltage Indicator | Flashing/ Non-Flashing LEDs |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting 3/4“ conduit (1.15“ actual) or M20 Knockout (0.79“ actual) |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to + 85°C |
| UL Rated AC Operational Range | 20 - 600 VAC 50/60/400Hz |
| UL Rated DC Operational Range | 15 - 1000 VDC |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Lead Connections | 3 Phase, 4 and 5-wire |
| Environmental Ratings | UL Type 4X, 12, 13 IP67 |
| File Number/CCN | E256847 / NKCR, NKCR7 E334957 / NOVI, NOVI7 E311256 / PICQ, PICQ7 |
| Certifications | cULus Listed, CE, RoHS, Class 1 Div 2 Group A, B, C & D |
