R-3F2

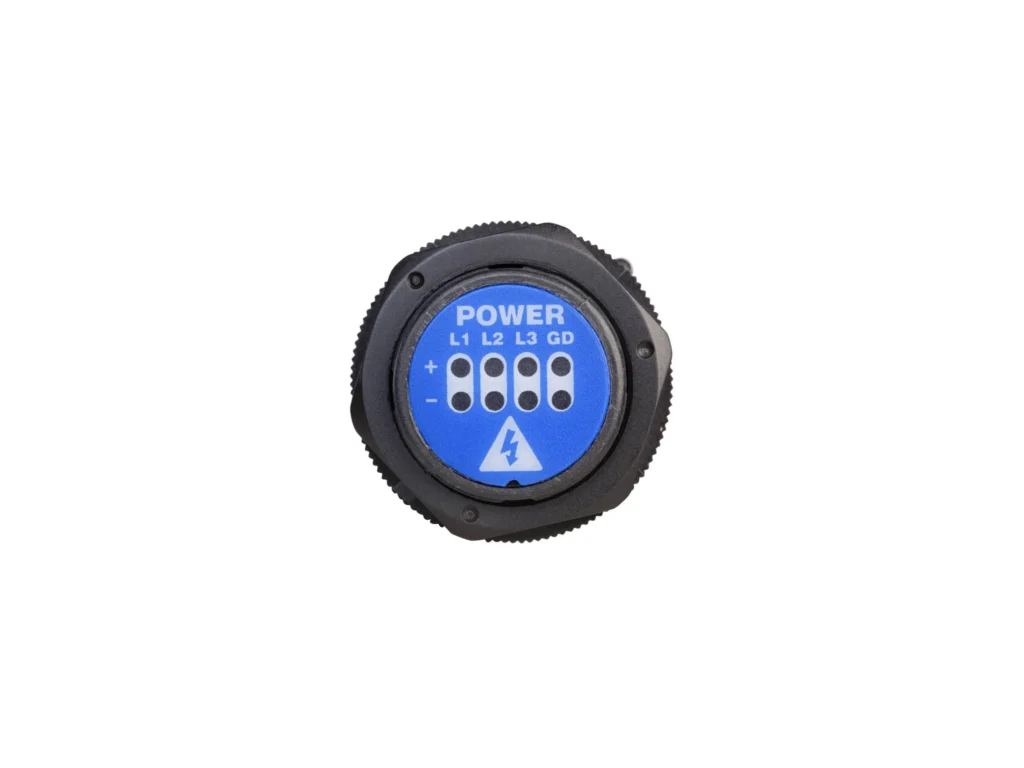

Fiber Optic Voltage Indicator
Voltage Indicator with 12, 24, 36, 48 and 72 in Optical Cable and Zero Voltage to the Door Option.
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3F2 Available in: 12” 24”, 36”, 48”, and 72” |
|---|---|
| Description | Fiber Optic Voltage Indicator |
| Voltage Indicator | Flashing LEDs |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, One 30mm Knockout or One 43mm Through Hole Low Profile Bezel Mount* |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to + 85°C |
| UL Rated AC Operational Range | 20 - 600 VAC 50/60/400Hz |
| UL Rated DC Operational Range | 20 - 1000 VDC |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Lead Connections | 3 Phase, 4-Wire |
| Environmental Ratings | UL Type 4X, 12, 13 IP66 |
| File Number/CCN | E334957 / NOVI, NOVI7 E311256 / PICQ, PICQ7 |
| Certifications | cULus Listed, CE, RoHS Class 1 Div 2 Group A, B, C & D |
