R-3W-DC
DC Voltage Indicator

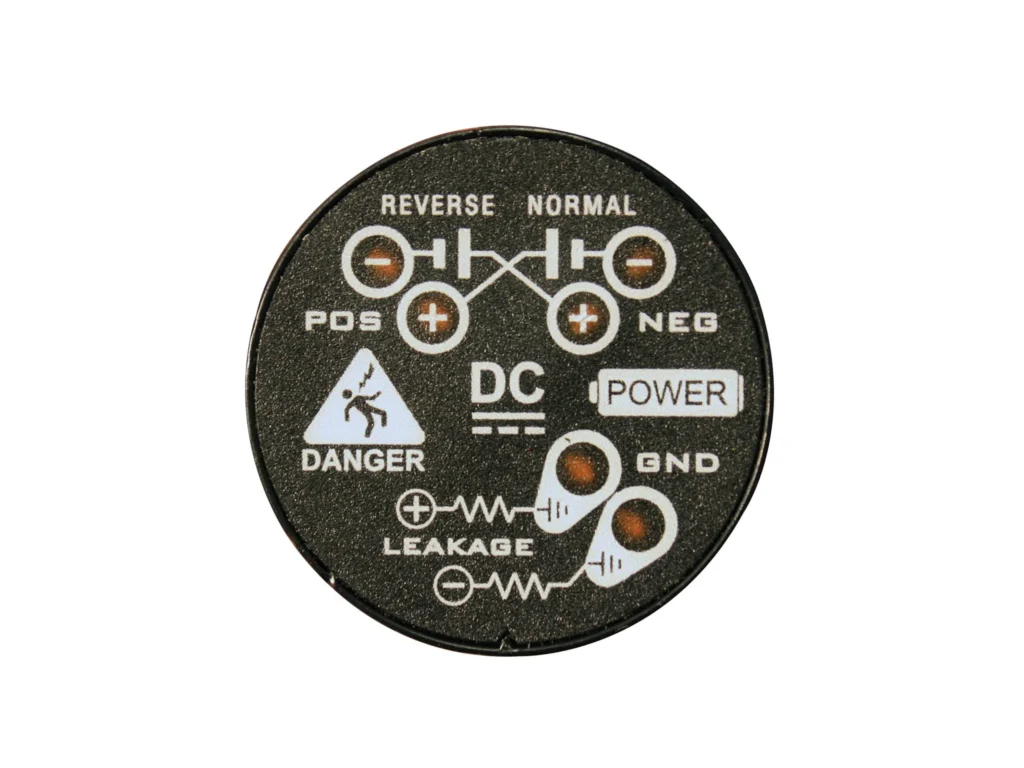

DC Voltage Indicator with Flashing LEDs
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3W-DC R-3W-DC-KB* |
|---|---|
| Description | DC Voltage Indicator |
| Voltage Indicator | Flashing LEDs |
| Voltage Type | DC |
| Mounting Location & Installation | External Mounting, One 30mm Knockout or One 43mm Through Hole Low Profile Bezel Mount* |
| Operational & Storage Temperature Range | Operational: -40°C to +55°C Storage: -45°C to +55°C |
| UL Rated AC Operational Range | 20 - 600 VAC 50/60/400Hz |
| UL Rated DC Operational Range | 15 - 1000 VDC |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Lead Connections | 1 Phase, 3 -Wire |
| Environmental Ratings | UL Type 4, 4X, 12, 13 IP67 |
| File Number/CCN | E256847 / NKCR, NKCR7 E311256 / PICQ, PICQ7 |
| Certifications | cULus Listed, CE, RoHS |
