R-3MT-VI-KIT
ChekVolt

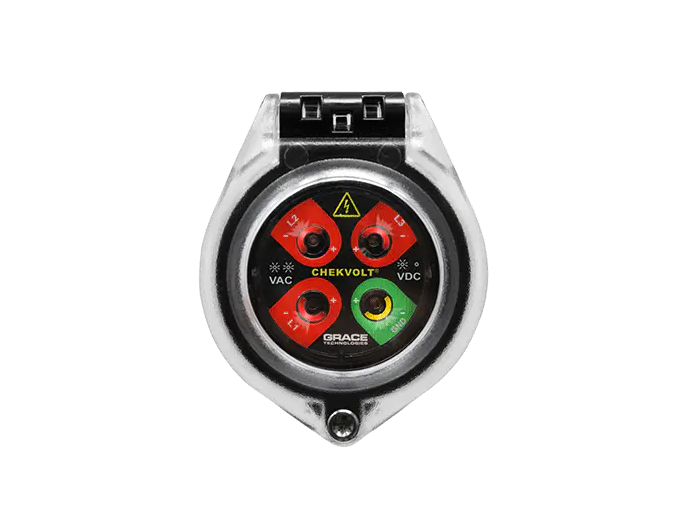

ChekVolt® allows you to test absence of voltage and provides voltage presence indication; all without opening the enclosure door. This touch-safe, compact PESD® features voltmeter compatible test points and redundant LED voltage presence indication. The ChekVolt® is quickly installed through a single 30mm knockout and includes four 14 AWG lead wires potted in the construction.
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3MT-VI-KIT |
|---|---|
| Description | NEW ChekVolt® Includes Cap Horizontal Label, and Flange Label |
| Voltage Indicator | All in One Unit Flashing LEDs |
| Safe-Test Point | All in One Unit |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, One 30mm Knockout |
| Operational & Storage Temperature Range | Operational: -20ºC to +55ºC Storage: -45ºC to +85ºC |
| UL Rated AC Operational Range | Voltage Indicator: 20 - 1000 VAC Test Point: 0 - 1000 VAC 50/60/400Hz |
| UL Rated DC Operational Range | Voltage Indicator: 20 - 1000 VDC Test Point: 0 - 1000 VDC |
| Internal Resistance | 164 kΩ in series on each input wire to respective output test jack (L1, L2, L3, GND) |
| Correction Factor | Voltage Actual = 1.033 x Test Point voltage reading with a 10MΩ meter (measured voltage reads 3.3% less than actual due to internal impedance protection of the PESD) |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 14 AWG, 90°C @ 1000V, UL-1452 |
| Environmental Ratings | UL Type 4, 4X, 12, 13 IP66, IP69 |
| UL File Number/ CCN | E311256 / PICQ, PICQ7 |
| Certification Details | cULus Listed, CE, RoHS |
