R-3MT-KIT-H
Absence of Voltage Safe-Test Point

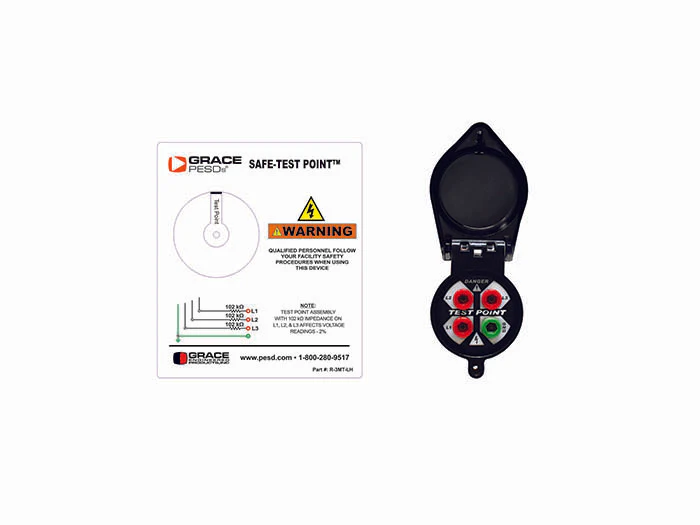

Absence of Voltage Safe-Test Point with Label and Dust Cap, Horizontal Mount
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-3MT-KIT-H* R-3MT-KIT-F* |
|---|---|
| Description | 4-Wire Safe-Test Point™ with Label and Dust Cap |
| Safe-Test Point | R-3MT |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, One 30mm Knockout |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to +85°C |
| UL Rated AC Operational Range | 0 to 600 VAC phase to phase and/or phase to ground 50/60/400Hz |
| UL Rated DC Operational Range | 0 - 600 VDC |
| Internal Resistance | 102 kΩ in series on each input wire to respective output test jack (L1, L2, L3, GND) |
| Correction Factor | Voltage Actual = 1.02 x Test Point voltage reading with a 10MΩ meter (measured voltage reads 2% less than actual due to internal impedance protection of the PESD) |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Components | Three Red jacks (L1, L2, L3), 1 Green jack (GND), .080” DIA pin sockets, minimum probe insertion length .480” |
| Environmental Ratings | UL Type 12, 13 IP67 |
| UL File Number/ CCN | E311256 / PICQ, PICQ7 |
| Certification Details | cULus Listed, CE, RoHS |
