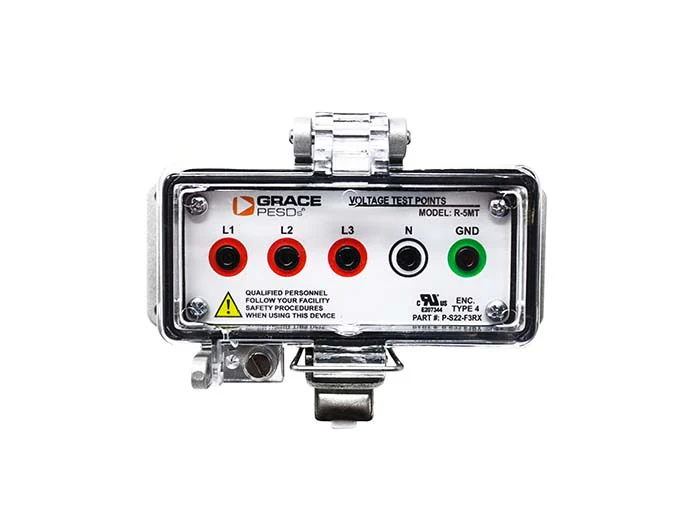

R-5MT
5 Wire Safe Test Point
5 Wire Safe-Test Point in UL Type 4 Housing
Brand: Grace Technologies
Add to Quote Download Spec Sheet PDFSpecifications
| Product Number | R-5MT* R-5MT-4X* R-5MT-12* |
|---|---|
| Description | 5-Wire Safe-Test Point™ |
| Safe-Test Point | Manual Interface w/Meter |
| Voltage Type | AC/DC |
| Mounting Location & Installation | External Mounting, F Housing Standard Mount: L: 6.50 (165.0) x W: 3.78 (96.0) x D: 2.50 (64.0) |
| Operational & Storage Temperature Range | Operational: -20°C to +55°C Storage: -45°C to +85°C |
| UL Rated AC Operational Range | 0 to 600 VAC phase to phase and/or phase to ground 50/60/400Hz |
| UL Rated DC Operational Range | 0 - 600 VDC |
| Internal Resistance | 102 kΩ in series on each input wire to respective output test jack (L1, L2, L3, N, GND) |
| Correction Factor | Voltage Actual = 1.02 x Test Point voltage reading with a 10MΩ meter (measured voltage reads 2% less than actual due to internal impedance protection of the PESD) |
| Wire/Wiring Specifications | PVC Insulated with Nylon Jacket, 8ft, 18 AWG, 90°C @ 1000 Volts, UL-1452 |
| Components | Three Red jacks (L1, L2, L3), 1 Black jack (Neutral), One Green jack (GND), .080” DIA pin sockets, minimum probe insertion length .480” |
| Environmental Ratings | UL Type 4, 4X, 12 (depending on housing specified) IP65 (only applies to 4, 4X housings) |
| UL File Number/ CCN | E311256/PICQ, PICQ7 (Test Point) E207344/NITW, NITW2 (Housing) |
| Certification Details | UL Recognized, CE, RoHS |
