Flexible Metal Conduit TYPE – BR
Flexible Metal Conduit TYPE – BR

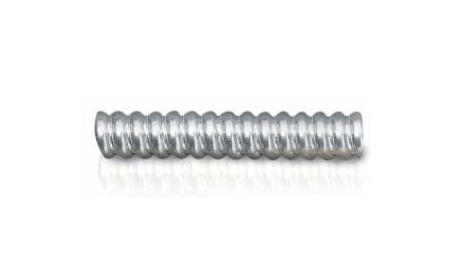

Flexible Metal Conduit TYPE – BR “BLUE RIBBON” This non-jacketed flexible steel conduit has many universal wiring applications. It is often referred to as “Greenfield” or “Reduced Wall Flex”

CONSTRUCTION: Type BR is formed from a highly corrosion resistant hot-dipped galvanized steel. Its profile and helical shape allow it to withstand substantial impact and crushing forces. Meets federal specification A-A-55810 Type IV. (Formerly, WW-C-566c Type II)

APPLICATION: This conduit is intended for installation as a metal raceway for wires and cable in accordance with the NEC® (ANSI//NFPA- 70). Article 348.

  • Suitable as an equipment grounding conductor (Section 250.118(5))
  • Wiring in elevators, hoist ways and escalators. (Section 620.21(A))
  • Use of 3/8 inch trade size. (Section 348.20)
    • Leads of motors (Section 430.145(b))
    • Listed Assemblies, Tap Conductors (Section 410.67c)
    • Manufactured Wiring Systems – (Section 604.6(a))
    • Listed Wired Fixtures (Section 410.77c)
  • Suitable for use with listed connectors intended for “FMC” (Flexible Metal Conduit). Flexible metal conduit is also permitted for use on industrial machinery (ANSI//NFPA-79) Section 14.5.4

Listed File #E53253 (sizes 3/8 through 3 inch). Conforms to Underwriters Laboratories Standard ANSI/UL-1 for Flexible Metal Conduit.

Certified File #LL18858 (3/8 inch size only) Conforms to CSA 22.2 No. 56 for use per the Canadian electrical code C22.1 Section 12-1000.

Tests Include: WEEE and RoHS Compliant

Download the Flexible Metal Conduit TYPE – BR spec sheet below or call 714.835.6211 for more information.
