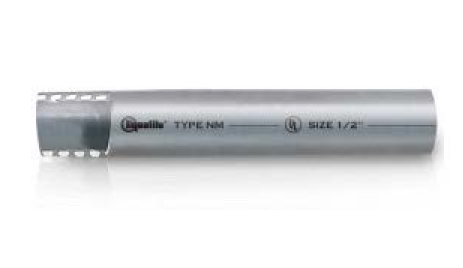

Liquidtight Flexible Nonmetallic Conduit Type – NM
Liquidtight Flexible Nonmetallic Conduit Type – NM

Liquidtight Flexible Nonmetallic Conduit TYPE – NM

A general purpose nonmetallic liquidtight conduit offers excellent protection to wiring from abrasion, sunlight, mild acids, alkaline and oils. Often used for air conditioning hook-ups and other outdoor applications.

CONSTRUCTION: NM is a helically wound integral Type B construction. It contains a spiral of rigid PVC reinforcement imbedded within the PVC wall.

APPLICATION: Type NM is intended for installation in accordance with Article 356 of the NEC® (ANSI/NFPA-70) for Flexible Liquidtight Nonmetallic Conduit (LFNC-B or FNMC-B).

  • For containment of 600 volt and lower potential circuits.
  • Listed and Marked for Outdoor Use.
  • Listed and Marked for Direct Burial and in Poured Concrete
  • Installations in hazardous (classified) locations:
    • Class I Div. 2 Article 501
    • Class II Div. 1 & 2 Article 502
    • Class III Div. 1 & 2 Article 503
  • Electric Signs and Outdoor Lighting over 1000 volts. Article 600.32(A)
  • Wiring methods for pools and spas. Article 680.   Conforms to the requirements of section 14.5.5 of the Electrical Standard for Industrial Machinery NFPA-79. Listed File # E 79308 Conforms to Underwriters Laboratories Standard ANSI/UL 1660 type B Certified File #LL 230485 Conforms to CSA 22.2 No. 227.2 type B

Fittings: Suitable for use with nonmetallic fittings marked for FNMC-B or LFNC-B for Liquidtight Flexible Nonmetallic Conduit type B or with standard metal liquidtight fittings. See NMLT Connectors for further information.

Tests Include: WEEE and RoHS Compliant

Download the  Liquidtight Flexible Nonmetallic Conduit Type – NM spec sheet below or call 714.835.6211 for more information.



Get a Quote Download Spec Sheet PDF
