CGFP7920

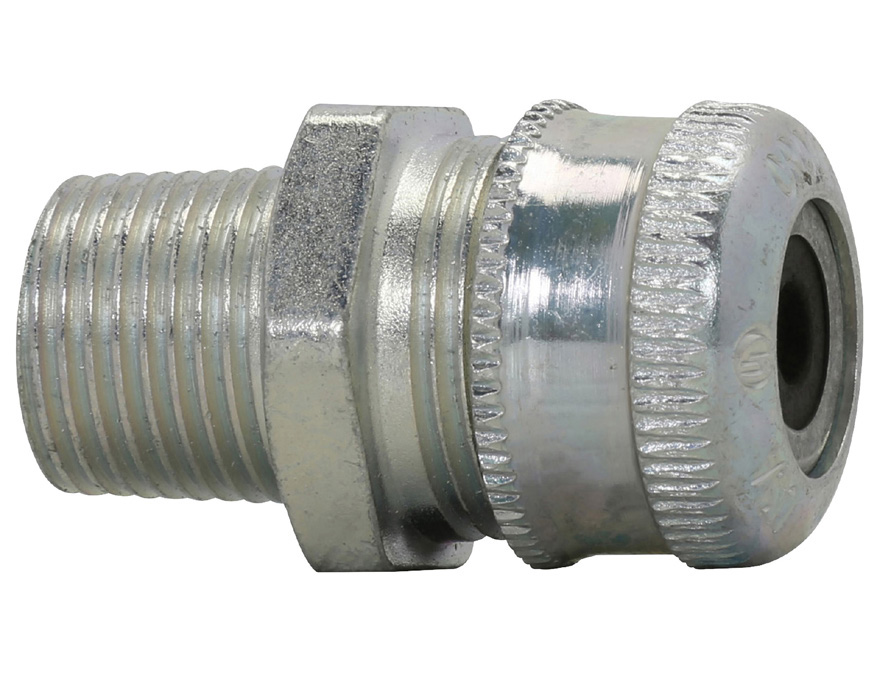

Crouse-Hinds CGFP 2-1/2″ Non-Armored Gland, 2.188-2.500″, CGFP7920
Heavy-duty CGFP series non-armored cable gland with Feraloy® iron alloy body. Fits cables 2.188″ to 2.500″. 2-1/2″ NPT.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Feraloy® iron alloy body and gland nut for Form F provides exceptional mechanical resistance.
- Weatherproof seal directly on the outer sheath of large diameter cables.
- Designed specifically for larger entry sizes 2-1/2″ NPT.
- cULus Listed for Class I, Division 2 hazardous areas.
- High strength construction with neat, professional finish.
Specifications
| Catalog Number | CGFP7920 |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | F |
| Number of Bushings | 1 |
| Gland Dimensions | Gland Length Less Entry (F): 3.250″, Entry Thread Length (B): 1.438″, Hex/Gland Width (G): 3.875″ |
Product Attributes
| Material | Feraloy® Iron Alloy |
|---|---|
| Thread Standard | NPT |
| Thread Size | 2-1/2″ |
| Cable Range (in) | 2.188 – 2.500″ |
| Cable Range (mm) | 55.58 – 63.5 mm |
| IP Rating | IP54 |
| NEMA Rating | Weatherproof / NEMA 3R |
| Operating Temperature | -40°C to +100°C |
