CGE2-050-1

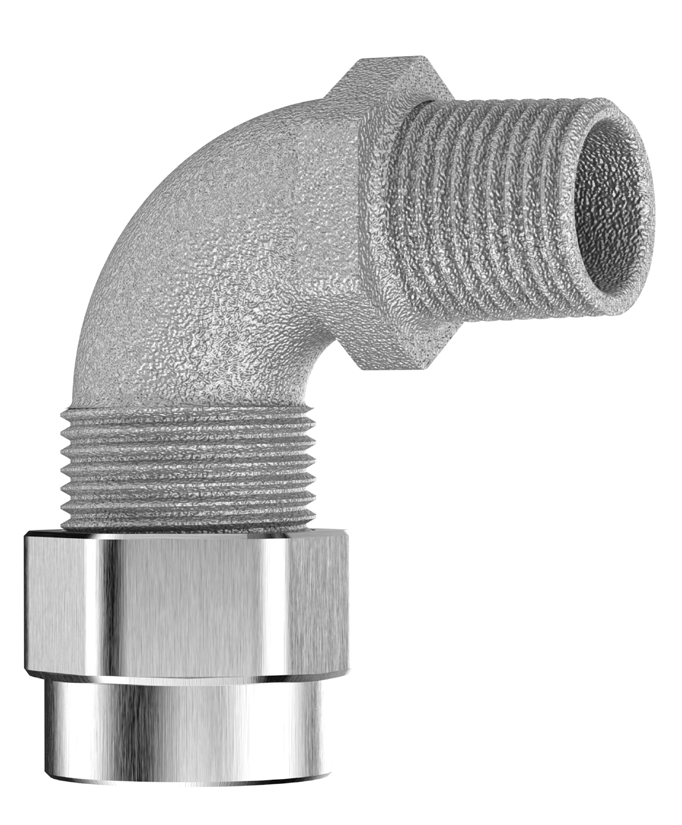

Crouse-Hinds CGE 1/2″ NEMA 4 Cable Gland, 0.500-0.875″, CGE2-050-1
Heavy-duty CGE series NEMA 4 cable gland with Feraloy® iron body and steel nut. Fits cables 0.500″ to 0.875″. 1/2″ NPT.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Feraloy® iron alloy body with electrogalvanized paint for extreme environment protection.
- Gland nut in heavy-duty steel provides strong thread torque and compression.
- NEMA 4 rating provides protection against hose-directed water and dust.
- cULus Listed for safe use in hazardous Class I, Division 2 areas.
- Includes 3 rubber compression bushings to span the full cable range of 0.500 – 0.875″.
Specifications
| Catalog Number | CGE2-050-1 |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | Standard |
| Number of Bushings | 3 |
| Gland Dimensions | Length Less Entry (F): 2.000″, Entry Thread Length (B): 0.560″, Hex flats (G): 1.660″ |
Product Attributes
| Material | Feraloy® Iron Alloy Body & Steel Gland Nut |
|---|---|
| Thread Standard | NPT |
| Thread Size | 1/2″ |
| Cable Range (in) | 0.500 – 0.875″ |
| Cable Range (mm) | 12.7 – 22.22 mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3R, 4 |
| Operating Temperature | -40°C to +100°C |
