CGB2-075-2-SA

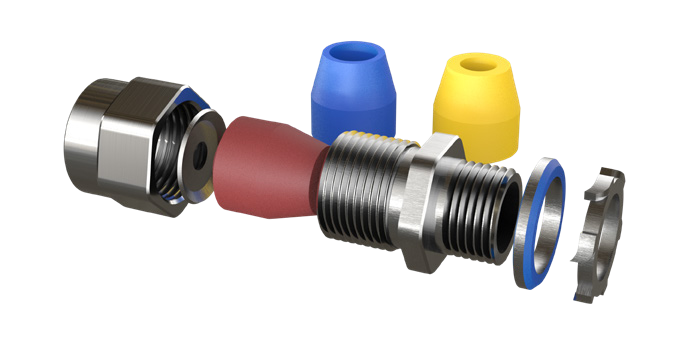

Crouse-Hinds CGB 3/4″ Aluminum Cable Gland, 0.375-0.500″, CGB2-075-2-SA
Lightweight Copper-Free Aluminum cable gland with 3/4″ NPT threads. Fits cables 0.375″ to 0.500″ (9.52 to 12.7 mm). Rated NEMA 3R, 4X.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Corrosion-resistant copper-free aluminum body and gland nut.
- Precision weatherproof seal with high-grade neoprene compression bushing.
- Lightweight construction with excellent mechanical strength.
- cULus Listed for Class I, Division 2 hazardous locations.
- Compatible with 3/4″ NPT threaded entries or clearance holes.
Specifications
| Catalog Number | CGB2-075-2-SA |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | Standard |
| Number of Bushings | 1 |
| Gland Dimensions | Length Less Entry (F): 1.200″, Entry Thread Length (B): 0.570″, Hex Flats (G): 1.160″ |
Product Attributes
| Material | Copper-Free Aluminum |
|---|---|
| Thread Standard | NPT |
| Thread Size | 3/4″ |
| Cable Range (in) | 0.375 – 0.500″ |
| Cable Range (mm) | 9.52 – 12.7 mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3R, 4X |
| Operating Temperature | -40°C to +100°C |
