CGB8917 SA

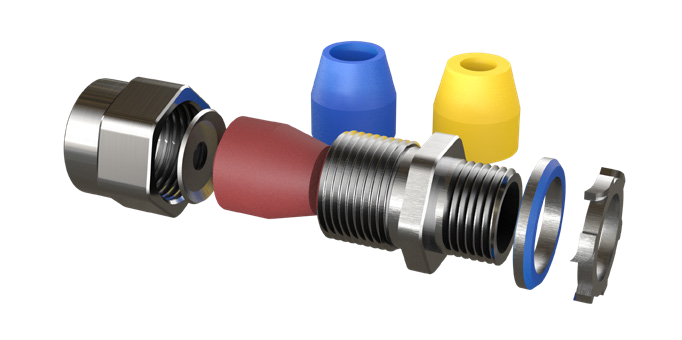

Crouse-Hinds CGB 3″ Aluminum Cable Gland, 1.875-2.188″, CGB8917 SA
Lightweight Copper-Free Aluminum cable gland with 3″ NPT threads. Fits cables 1.875″ to 2.188″ (47.62 to 55.58 mm). Rated NEMA 3R.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Corrosion-resistant copper-free aluminum body and gland nut.
- Precision weatherproof seal with high-grade neoprene compression bushing.
- Lightweight construction with excellent mechanical strength.
- cULus Listed for Class I, Division 2 hazardous locations.
- Compatible with 3″ NPT threaded entries or clearance holes.
Specifications
| Catalog Number | CGB8917 SA |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | F |
| Number of Bushings | 1 |
| Gland Dimensions | Length Less Entry (F): 2.625″, Entry Thread Length (B): 1.438″, Hex Flats (G): 3.875″ |
Product Attributes
| Material | Copper-Free Aluminum |
|---|---|
| Thread Standard | NPT |
| Thread Size | 3″ |
| Cable Range (in) | 1.875 – 2.188″ |
| Cable Range (mm) | 47.62 – 55.58 mm |
| IP Rating | IP54 |
| NEMA Rating | NEMA 3R |
| Operating Temperature | -40°C to +100°C |
