CGB7915

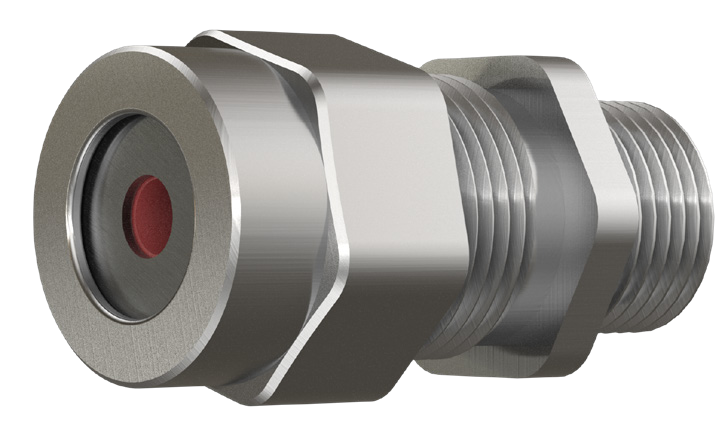

Crouse-Hinds CGB 2-1/2″ Steel Cable Gland, 1.625-1.875″, CGB7915
Heavy-duty Feraloy® Iron Alloy non-armored cable gland with 2-1/2″ NPT threads. Fits cables 1.625″ to 1.875″ (41.27 to 47.62 mm). Rated NEMA 3R, 4.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Precision weatherproof seal with high-grade neoprene compression bushing.
- Robust Feraloy® Iron Alloy construction protects cables from damage and wear.
- NPT thread size 2-1/2″ provides secure connection to electrical boxes.
- cULus Listed for Class I, Division 2 hazardous industrial environments.
- Accommodates cable ranges from 1.625″ to 1.875″ (41.27-47.62 mm).
Specifications
| Catalog Number | CGB7915 |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | E |
| Number of Bushings | 1 |
| Gland Dimensions | Length Less Entry (F): 2.625″, Entry Thread Length (B): 1.000″, Hex Flats (G): 3.125″ |
Product Attributes
| Material | Feraloy® Iron Alloy |
|---|---|
| Thread Standard | NPT |
| Thread Size | 2-1/2″ |
| Cable Range (in) | 1.625 – 1.875″ |
| Cable Range (mm) | 41.27 – 47.62 mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3R, 4 |
| Operating Temperature | -40°C to +100°C |
