CGB2-050-1

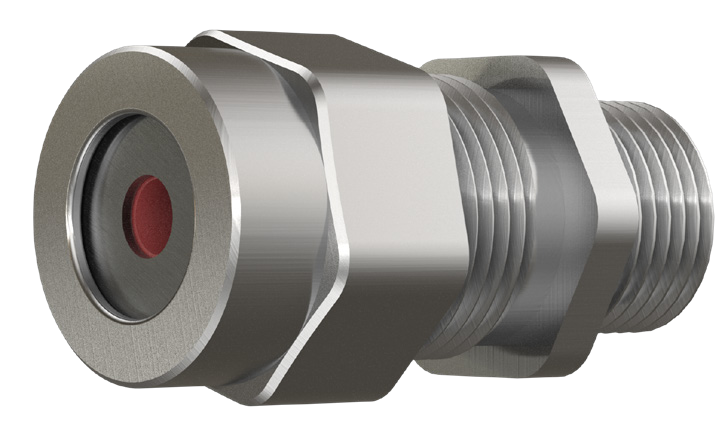

Crouse-Hinds CGB 1/2″ Steel Cable Gland, 0.250-0.375″, CGB2-050-1
Heavy-duty Zinc-Electroplated Steel non-armored cable gland with 1/2″ NPT threads. Fits cables 0.250″ to 0.375″ (6.35 to 9.52 mm). Rated NEMA 3R, 4.
Provides a heavy-duty mechanical seal and secure strain relief for non-armored and tray cables in demanding commercial and industrial electrical environments.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Precision weatherproof seal with high-grade neoprene compression bushing.
- Robust Zinc-Electroplated Steel construction protects cables from damage and wear.
- NPT thread size 1/2″ provides secure connection to electrical boxes.
- cULus Listed for Class I, Division 2 hazardous industrial environments.
- Accommodates cable ranges from 0.250″ to 0.375″ (6.35-9.52 mm).
Specifications
| Catalog Number | CGB2-050-1 |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Cable Glands |
| Form Size | Standard |
| Number of Bushings | 1 |
| Gland Dimensions | Length Less Entry (F): 1.200″, Entry Thread Length (B): 0.560″, Hex Flats (G): 1.160″ |
Product Attributes
| Material | Zinc-Electroplated Steel |
|---|---|
| Thread Standard | NPT |
| Thread Size | 1/2″ |
| Cable Range (in) | 0.250 – 0.375″ |
| Cable Range (mm) | 6.35 – 9.52 mm |
| IP Rating | IP66 |
| NEMA Rating | NEMA 3R, 4 |
| Operating Temperature | -40°C to +100°C |
