ADE 6F Armoured Cable Gland
ADE 6F Armoured Cable Gland

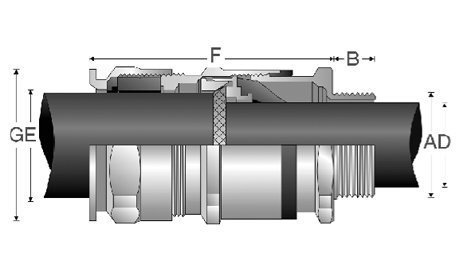

ADE 6F Armoured Cable Gland by Crouse-Hinds Features:

  • Standard material is nickel-plated brass for superior corrosion resistance
  • Armour clamping and bonding with no reversible components for easy installation, minimizing error
  • Provides fully inspectable inner seal after installation
  • Flameproof diaphragm seal on inner jacket does not damage cables exhibiting “cold-flow”; weatherproof seal on outer sheath of cable
  • Deluge boot provides enhanced protection from water ingress
  • Standard neoprene seal suitable for use in operating temperatures ATEX (-60°C to 100°C), IECEx and cULus (-40°C to 100°C)
  • Available with metric or NPT threads

Gland Type: Armoured

Cable Type: Steel wire armoured, steel wire braided, steel tape armoured and braided marine shipboard 11 /2″

ADE 6F Armoured Cable Gland Certifications and Compliances:

  • ATEX LCIE 97 6008X – Exd IIC / Exe II / Ex tD / Ex II 2GD
  • IECEx LCI 05.0004X
  • cULus Listed for Class I, Zone 2 AEx e II / Ex e II E310130
  • cULus Marine Listed for Class I, Zone 2 AEx e II / Ex e II E314047
  • NEMA 4X and IP68
  • CEPEL
  • GOST-R
  • NEPSI

Download the ADE 6F Armoured Cable Gland spec sheet below or call 714.835.6211 for more information.

Brand: Crouse Hinds
