Busbar Insulation Tubing up to 1 kV – LVIT-175/70-A/U-4

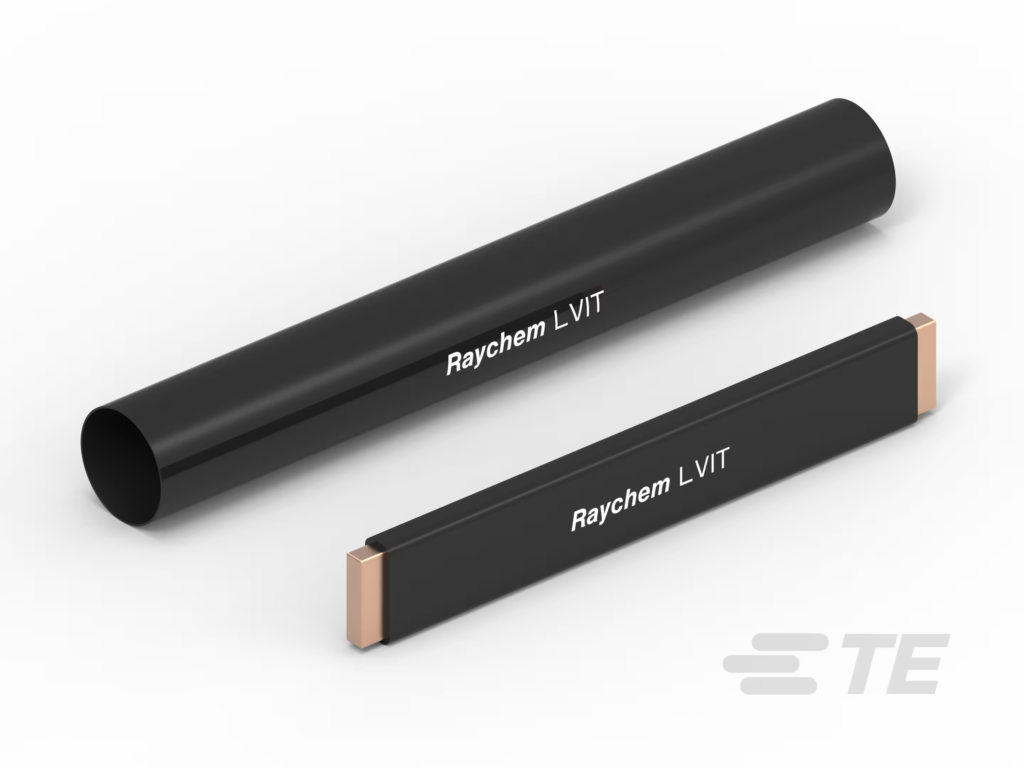

TE Connectivity’s (TE) Raychem black, medium-wall, flame retardant heat shrink LVIT tubing is suitable for insulating busbars up to 1 kV. This highly flexible tubing can be used on a variety of curved and bent busbars of both circular and rectangular cross-section.
TE’s Raychem LVIT tubing can be easily installed in a factory environment using an oven or in the field using a gas torch or hot air. The LVIT is manufactured in UV resistant material, making it suitable for both indoor and outdoor applications.
The LVIT tubing is suitable for both enclosed and exposed busbars and for connections in switchgear, substations, motor control centers and other electrical equipment.
Brand: TE Connectivity
Get a Quote Download Spec Sheet PDF| PRODUCT SELECTION INFORMATION | ||||
| Description | Rectangular Busbars L+T (mm) | Round Busbars D (mm) | ||
| min. | max. | min. | max. | |
| LVIT-175/70-A/U-4 | 117 | 190 | 75 | 120 |
Specifications
| Key Features | • Compatible with all other products in the low voltage insulation range • Flame retardant • Continuous operating temperature rating up to 105°C • Suitable for indoor and outdoor applications • Good thermal emissivity and contact with busbars • Can be stored indefinitely at temperatures up to 50°C • UL approved |
|---|---|
| Thermal Endurance | 105°C min. |
| Flammability | Self Extinguishing 60 sec max |
| Low Temperature Flexibility 4hrs at -40°C | No Cracking |
| Water absorption | 24 hrs at 23°C, 0.2% max. |
| Resistance to transformer oil -Tensile strength -Ultimate elongation | 168 hrs at 23°C 11 MPa (1600 psi) min. 300% |
