Breakout Style Cable Tight Buffer – LSZH Indoor/Outdoor
The MarineTuff fiber line features all-dielectric cable, but metallic armoring can be added when needed for a specific installation. Cable designs feature flame retardant, thermoplastic buffers/tubes, aramid yarn strength members, optional aluminum armor, overall water-blocking tape and low smoke zero halogen jackets (LSZH).
Featured Options:
- LSZH
- 900um tight buffer fibers
- Flameretardant
- Directconnectorization
- Also available in a 2.5mm sub-unit
Certifications/Compliance
- NEC/CEC
- ULType OFNR (unarmored)/OFCR (armored)
- cUL OFNR/OFCRFT-4
- Marineapprovals: ABS type approval

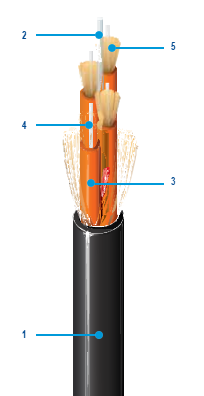

Construction:
- BlackOuter Jacket
- CentralE-Glass Strength Member
- 0mmSubunits
- 900Micron Tight Buffered Fiber
- AramidYarn
Brand: Belden
Get a Quote Download Spec Sheet PDF| No of Fibers | Fibers/ Bundle | Part No. | OD (Nom) | ||||
| OM1 (62.5/125) Std. 1Gb | OM3 (50/125) 10 Gb – 300m | OM4 (50/125) 10 Gb – 550m | “OS2 Single-mode Enhanced” | Inch | mm | ||
| 2 | 1 | FD1B002LB | FD3B002LB | FD4B002LB | FDSB002LB | .260 | 6.60 |
| 4 | 1 | FD1B004LB | FD3B004LB | FD4B004LB | FDSB004LB | .321 | 8.15 |
| 6 | 1 | FD1B006LB | FD3B006LB | FD4B006LB | FDSB006LB | .358 | 9.09 |
| 10 | 1 | FD1B010LB | FD3B010LB | FD4B010LB | FDSB010LB | .455 | 11.56 |
| 12 | 1 | FD1B012LB | FD3B012LB | FD4B012LB | FDSB012LB | .514 | 13.06 |
