600V, 16 AWG Foundation Fieldbus – Bronze Armored
FOUNDATION Fieldbus is the dominant industrial network in offshore environments. Belden Fieldbus cables are designed to withstand the destructive effects of temperature extremes, humidity/moisture, dust and oil. In harsh environments such as oil and gas extraction ultraviolet radiation from extensive exposure to the sun can shorten cable life. With the high cost of downtime in such remote locations, investing in cable with proven performance and reliability can significantly reduce the likelihood of system failure.
Featured Options:
- Low Smoke Zero Halogen – Both Thermoplastic and Thermoset Options
- Bronze braid armoring
- Additional AWG sizes and pair counts available upon request
- Sun Res
- Oil Res II (Thermoset)

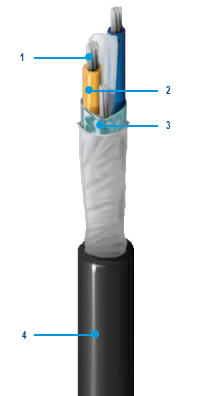

Construction:
- 18 or 16 AWG Stranded Tinned Copper Conductors
- XLP Insulation – 600V Polyolefin Insulation – 300V
- 100% Overall Foil Shield Coverage
- Plus Individually Shielded Pairs on Multi-Pair Constructions
- LSZH Thermoset or Thermoplastic Jacket
NOTE: Also available on all options, bronze braid armor with LSZH second jacket not pictured
Brand: Belden
Get a Quote Download Spec Sheet PDFKey Attributes
- Type P ratings on all 600V insulations and options
- LSZH jackets on all cables and options
- Bronze braid option on all cables
- ABS and DNV certified
- 10 year warranty
- Compliant with Fieldbus Spec IEC 61158-2 (ISA/SP-50)
- Excellent electrical characteristics
- Versions in 18 and 16 AWG stranded tinned copper conductors
- Standard multi-pair cables available in 2 to 12 Higher pair counts available upon request
- PLTC/ITC-ER,PLTC, and TC-ER versions
- C(UL) CIC Type TC on 600V XLP insulated products
- Suitable for use in Class 1, 2 applications
- RoHS compliant and CE approved
Certifications/Compliance
- ABS (American Bureau of Shipping)
- DNV (Det Norske Veritas)*
- IEEE 1580 Type P Insulations – 600V Constructions
- UL 1277 Type TC-ER – 600V Constructions
- PLTC/ITC-ER- 300V Constructions
- NEC CMG – 300V Constructions
- CEC CMG FT4 – 300V Constructions
- IEC 60332-3-24 (Cat C)
- FT4/IEEE 1202
- IEC 60332-3-22
- IEC 60754-1 (Jacket)
- IEC 60754-2 (Jacket)
| Part No. | AWG | Pairs | OD (Nom) | Additional Features/Ratings | |
| Inch | mm | ||||
| Stranded (7×24) TC Conductors – XLP Insulation – Double LSZH Jackets – TC Drain Wire – Individually shielded pairs and overall Beldfoil Shielding | |||||
| Thermoset Jacket | TC-ER, ITC-ER, Direct Burial | ||||
| 972127Z | 16 | 1 | 0.52 | 13.2 | |
| 972128Z | 16 | 2 | 0.81 | 20.5 | |
| 972129Z | 16 | 5 | 0.97 | 24.7 | |
| 972130Z | 16 | 8 | 1.17 | 29.7 | |
| Thermoplastic Jacket | |||||
| 772127T | 16 | 1 | 0.51 | 13.2 | |
| 772128T | 16 | 2 | 0.80 | 20.5 | |
| 772129T | 16 | 5 | 0.97 | 24.7 | |
| 772130T | 16 | 8 | 1.16 | 29.7 | |
